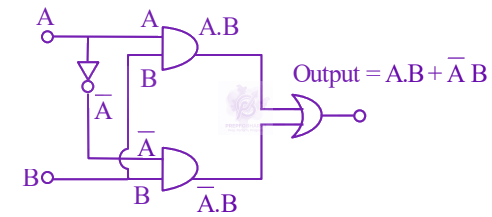

With respect to the above diagram, the final output can be calculated as follows:
Y=A⋅B+Aˉ⋅B=(A+Aˉ)⋅B⇒Y=1.B⇒Y=B
Hence, the required truth table can be written as follows:
The truth table for this given circuit is: JEE Main 2024 Physics, Semiconductors — question figure
JEE Main 2024 — Physics Modern Physics
2024mcqmedium
The truth table for this given circuit is:
Official previous-year question
Held on 29 Jan 2024 · Verified 6 Jul 2026.
Options
- A
- B
- C
- D
