The output of NAND gate is
Y=(AB)′.
The truth table is
A0011B0101Y1110
Y would be zero only when both A and B are 1 . Clearly, for all other input conditions the output will be 1. Hence, this is the right option.

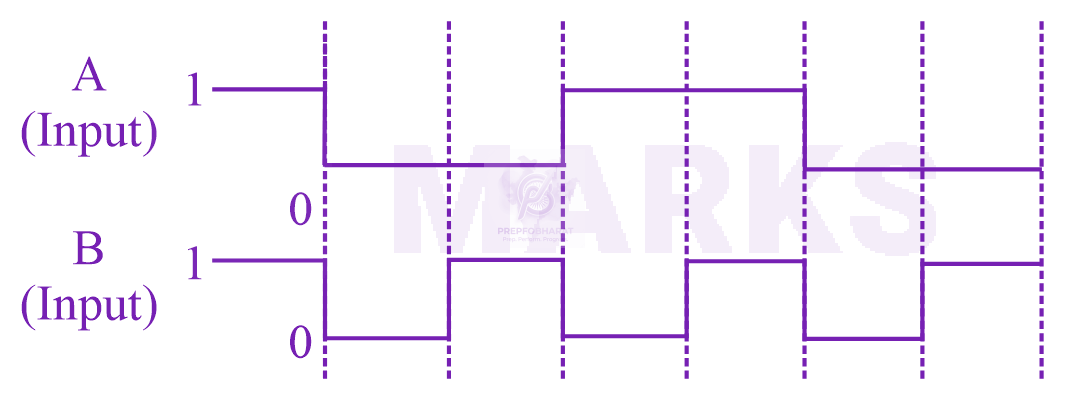

The output from a NAND gate having inputs A and B given below will be, JEE Main 2023 Physics, Semiconductors — question figure
JEE Main 2023 — Physics Modern Physics
2023mcqeasy
The output from a NAND gate having inputs A and B given below will be,
Official previous-year question
Held on 13 Apr 2023 · Verified 6 Jul 2026.
Options

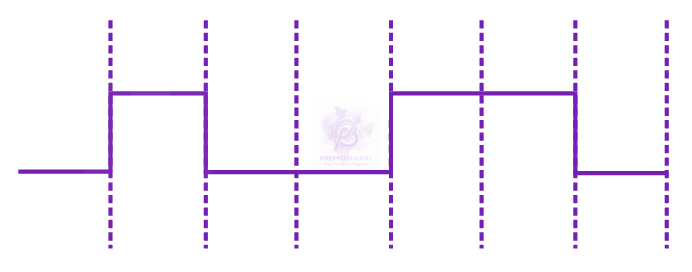

- A

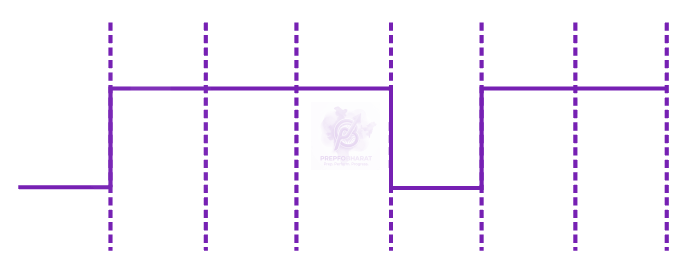

- B

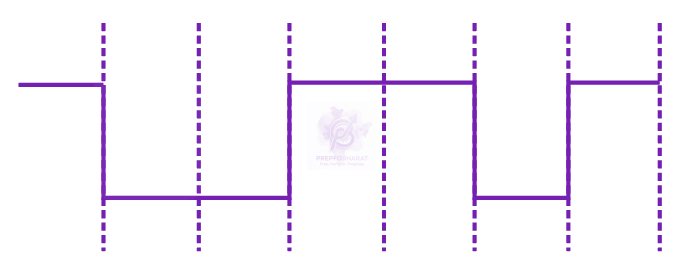

- C

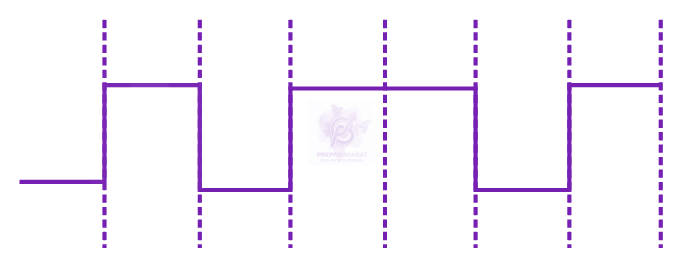

- D
