In the given circuit D2 will be reverse biased and D1,D3 will be forward biased. Therefore,
Req=216+2=10Ω
⇒I=1010=1A
JEE Main 2022 — Physics Modern Physics
2022integermedium

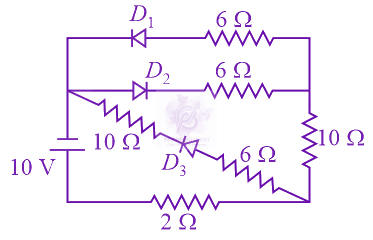

As per the given circuit, the value of current through the battery will be _____ A.
Official previous-year question
Held on 26 Jun 2022 · Verified 6 Jul 2026.
