As D2 is reversed biased, so no current through 75Ω resistor. now Req=150+50+100 =300Ω So, required current I=300 BatteryVoltage I=3006=0.02
The circuit shown below contains two ideal diodes, each with a forward resistance of 50 Ω. If the battery voltage is 6 ~V, the current through the…
JEE Main 2019 — Physics Modern Physics
2019mcqeasy

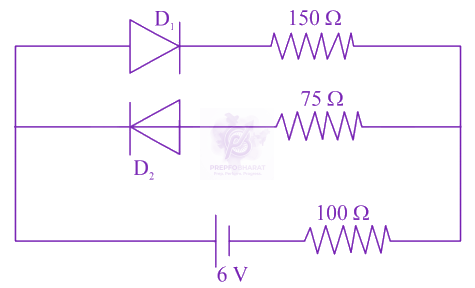

The circuit shown below contains two ideal diodes, each with a forward resistance of 50Ω. If the battery voltage is 6 V, the current through the 100Ω resistance (in Amperes) is:
Official previous-year question
Held on 11 Jan 2019 · Verified 6 Jul 2026.
Options
- A
0.036
- B
0.02
- C
0.027
- D
0.03
