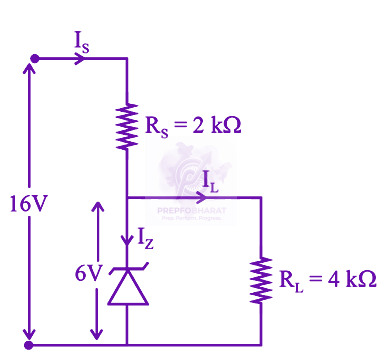

Current through 2KΩ is
i=200010=5mA
Current through 4 KΩ
iL=i−iz=40006=1.5mA
⇒iz=i−1.5
∴iz=5−1.5=3.5mA
JEE Main 2019 — Physics Modern Physics
2019mcqmedium
Figure shows a DC voltage regulator circuit, with a Zener diode of breakdown voltage =6V . If the unregulated input voltage varies between 10V to 16V, then what is the maximum Zener current?
Official previous-year question
Held on 12 Apr 2019 · Verified 6 Jul 2026.
Options
- A
1.5mA
- B
3.5mA
- C
7.5mA
- D
2.5mA
