Graph represents V-I characteristics of simple diode.

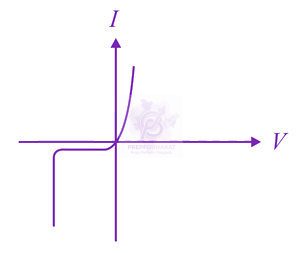

Graph represents V-I characteristic of Zener diode.
Graph represents V-I characteristics of Solar cell

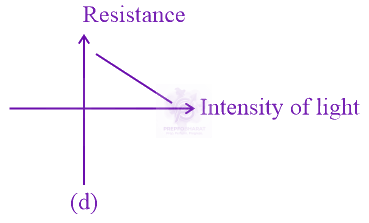

Graph represents V-I characteristics of light dependence resistance.
Identify the semiconductor devices whose characteristics are given below, in the order (a), (b), (c), (d): JEE Main 2016 Physics, Semiconductors —…
JEE Main 2016 — Physics Modern Physics
2016mcqeasy

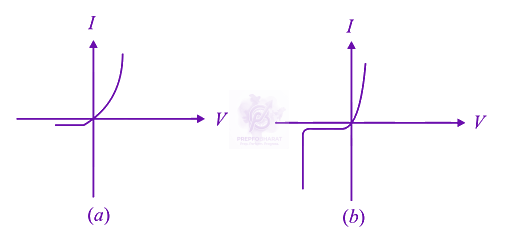

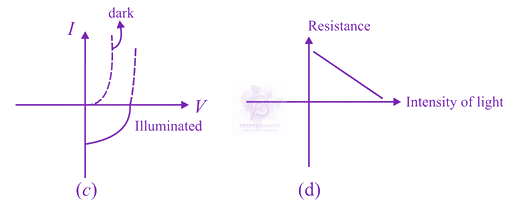

Identify the semiconductor devices whose characteristics are given below, in the order (a),(b),(c),(d):
Official previous-year question
Held on 3 Apr 2016 · Verified 6 Jul 2026.
Options
- A
Solar cell, Light dependent resistance, Zener diode, Simple diode
- B
Zener diode, Solar cell, Simple diode, Light dependent resistance
- C
Simple diode, Zener diode, Solar cell, Light dependent resistance
- D
Zener diode, Simple diode, Light dependent resistance, Solar cell
