Pzener=4i=1
⇒i=41A
i=R6=41
⇒R=24Ω
JEE Main 2016 — Physics Modern Physics

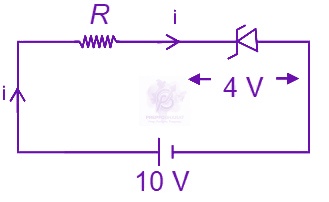

A Zener diode with a breakdown voltage of 4V is connected in series with a resistance R to a battery of emf 10V. The maximum power dissipation rating for the Zener diode is 1W. The value of R to ensure maximum power dissipation across the diode is
Held on 9 Apr 2016 · Verified 6 Jul 2026.
12Ω
24Ω
36Ω
6Ω
