JEE Main 2026 — Physics Electromagnetism

2026mcqmedium

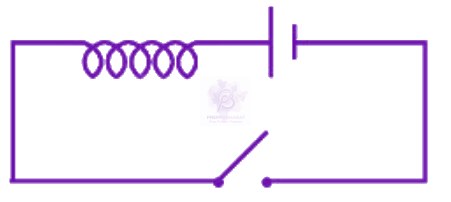

An inductor of inductance $10$ mH having resistance of $100\,\Omega$ is connected to battery of E.M.F. $1.0$ V through a switch as shown in the figure below. After switch is closed, the ratio of instantaneous voltages across the inductor when the current passing through it is $2$ mA and $4$ mA is _______.

JEE Main 2026 Physics, Electromagnetic Induction — question figure

Official previous-year question

Held on 6 Apr 2026 · Verified 6 Jul 2026.

Options

A
$4/3$
B
$3/4$
C
$5/3$
D
$3/5$

Did you get this right?

Solution

In an LR circuit, the equation for the voltage is given by Kirchhoff's loop law:

$E = L \dfrac{di}{dt} + iR$

The instantaneous voltage across the ideal inductor is the induced EMF, which is given by:

$V_L = L \dfrac{di}{dt} = E - iR$

Given values are:

$E = 1.0$ V

$R = 100\,\Omega$

For current $i_1 = 2$ mA $= 2 \times 10^{-3}$ A, the voltage across the inductor is:

$V_{L1} = 1.0 - (2 \times 10^{-3} \times 100) = 1.0 - 0.2 = 0.8$ V

For current $i_2 = 4$ mA $= 4 \times 10^{-3}$ A, the voltage across the inductor is:

$V_{L2} = 1.0 - (4 \times 10^{-3} \times 100) = 1.0 - 0.4 = 0.6$ V

The ratio of the instantaneous voltages is:

$\dfrac{V_{L1}}{V_{L2}} = \dfrac{0.8}{0.6} = \dfrac{4}{3}$

Answer: $4/3$
