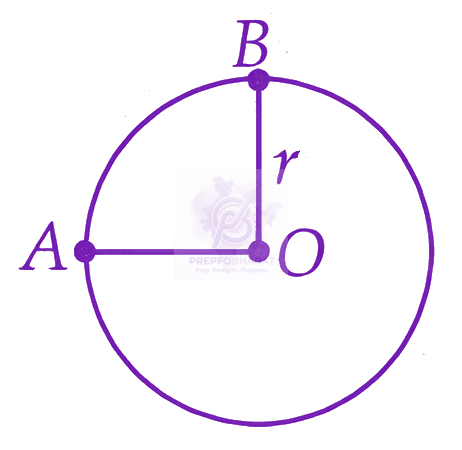

A wire of uniform resistance $\lambda \Omega / \mathrm{m}$ is bent into a circle of radius $r$ and another piece of wire with length $2 r$ is connected between points $A$ and $B(A O B)$ as shown in figure. The equivalent resistance between points $A$ and $B$ is $\_\_\_\_$ $\Omega$. ![JEE Main 2026 Physics, Current Electricity — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Current_Electricity/6983c1938bfdbb243563967a/question_1__q_6983c1938bfdbb243563967a__cdn-question-pool.getmarks.app__23S1_q_31_1__2a57d5ea3c_final_ppt_sync.png)

JEE Main 2026 — Physics Electromagnetism

2026mcqmedium

A wire of uniform resistance $\lambda \Omega / \mathrm{m}$ is bent into a circle of radius $r$ and another piece of wire with length $2 r$ is connected between points $A$ and $B(A O B)$ as shown in figure. The equivalent resistance between points $A$ and $B$ is $\_\_\_\_$ $\Omega$ .

JEE Main 2026 Physics, Current Electricity — question figure

Official previous-year question

Held on 23 Jan 2026 · Verified 6 Jul 2026.

Options

A
$\frac{3 \pi \lambda r}{8}$
B
$\frac{6 \pi \lambda r}{3 \pi+16}$
C
$2 \pi \lambda r$
D
$(\pi+1) 2 r \lambda$

Did you get this right?

Solution

The wire bent into a circle of radius $r$ has resistance $\lambda \cdot \pi r$ for the semicircular arcs, and the straight wire of length $2r$ has resistance $\lambda \cdot 2r$ . The three paths between A and B (two semicircular arcs of the circle and one straight wire through center) are in parallel.

$\frac{1}{R_{AB}} = \frac{2}{\lambda \pi r} + \frac{1}{\lambda \cdot 2r} + \frac{2}{\lambda \cdot 3\pi r}$

$= \frac{1}{\lambda r} \left[\frac{2}{\pi} + \frac{1}{2} + \frac{2}{3\pi}\right]$

$= \frac{1}{\lambda r} \left(\frac{12 + 3\pi + 4}{6\pi}\right) = \frac{1}{\lambda r} \cdot \frac{16 + 3\pi}{6\pi}$

$R_{AB} = \lambda r \left(\frac{6\pi}{16 + 3\pi}\right) = \frac{6\pi \lambda r}{3\pi + 16}$

Your note

JEE Main Electromagnetism in other years

Electromagnetism 2025 Electromagnetism 2024 Electromagnetism 2023 Electromagnetism 2022 Electromagnetism 2021 Electromagnetism 2020 Electromagnetism 2019 Electromagnetism 2018 Electromagnetism 2017 Electromagnetism 2016 Electromagnetism 2015 Electromagnetism 2014

Keep practicing Electromagnetism

Work through every JEE Main Electromagnetism PYQ, year by year.

Browse all Physics topics

Solution

$\frac{1}{R_{AB}} = \frac{2}{\lambda \pi r} + \frac{1}{\lambda \cdot 2r} + \frac{2}{\lambda \cdot 3\pi r}$

$= \frac{1}{\lambda r} \left[\frac{2}{\pi} + \frac{1}{2} + \frac{2}{3\pi}\right]$

$= \frac{1}{\lambda r} \left(\frac{12 + 3\pi + 4}{6\pi}\right) = \frac{1}{\lambda r} \cdot \frac{16 + 3\pi}{6\pi}$

$R_{AB} = \lambda r \left(\frac{6\pi}{16 + 3\pi}\right) = \frac{6\pi \lambda r}{3\pi + 16}$
