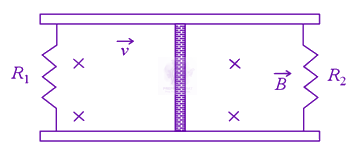

A conducting bar of length L is free to slide on two parallel conducting rails as shown in the figure
Two resistors R1 and R2 are connected across the ends of the rails. There is a uniform magnetic field B pointing into the page. An external agent pulls the bar to the left at a constant speed v.
The correct statement about the directions of induced currents I1 and I2 flowing through R1 and R2 respectively is :
Held on 16 Mar 2021 · Verified 6 Jul 2026.
Both I1 and I2 are in anticlockwise direction
Both I1 and I2 are in clockwise direction
I1 is in clockwise direction and I2 is in anticlockwise direction
I1 is in anticlockwise direction and I2 is in clockwise direction
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
A solenoid has a core made of material with relative permeability $400$. The magnetic field produced in the interior of solenoid is $1.0$ T. The magnetic intensity in SI units is $\alpha \times 10^5$. The value of $\alpha$ is ______. (Free space permeability $\mu_0=4\pi \times 10^{-7}$ SI units.)
Two identical small bar magnets each of dipole moment $3\sqrt{5}$ J/T are placed at a center to center separation of $10$ cm, with their axes perpendicular to each other as shown in figure. The value of magnetic field at the point P midway between the magnets is $\alpha \times 10^{-3}$ T. The value of $\alpha$ is ______. ($\mu_0=4\pi \times 10^{-7}$ Tm/A)
The heat generated in 1 minute between points $A$ and $B$ in the given circuit, when a battery of 9 V with internal resistance of $1 \Omega$ is connected across these points is $\_\_\_\_$ J.
Two known resistances of $R \Omega$ and $2 R \Omega$ and one unknown resistance $X \Omega$ are connected in a circuit as shown in the figure. If the equivalent resistance between points $A$ and $B$ in the circuit is $X \Omega$, then the value of $X$ is $\_\_\_\_$ $\Omega$.
A cylindrical conductor of length 2 m and area of cross-section $0.2 \mathrm{~mm}^{2}$ carries an electric current of 1.6 A when its ends are connected to a 2 V battery. Mobility of electrons in the conductor is $\alpha \times 10^{-3} \mathrm{~m}^{2} / V. s$. The value of $\alpha$ is : (electron concentration $=5 \times 10^{28} / \mathrm{m}^{3}$ and electron charge $\left.=1.6 \times 10^{-19} \mathrm{C}\right)$
