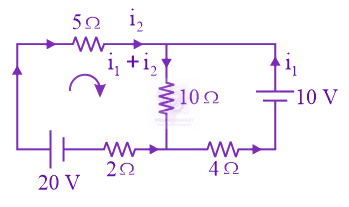

In the figure shown, the current in the 10V battery is close to : JEE Main 2020 Physics, Current Electricity — question figure

A magnetic field vector in an electromagnetic wave is represented by $\vec{B}=B_0\sin\left(2\pi vt-\dfrac{2\pi x}{\lambda}\right)\hat{j}$. Its associated electric field vector is ______.

A plane electromagnetic wave is moving in free space with velocity $c=3 \times 10^{8} \mathrm{~m} / \mathrm{s}$ and its electric field is given as $\vec{E}=54 \sin (k z-\omega t) \hat{j} \mathrm{~V} / \mathrm{m}$, where $\hat{j}$ is the unit vector along $y$-axis. The magnetic field vector $\vec{B}$ of the wave is:

A charged particle moves in a uniform magnetic field. If the velocity is perpendicular to the field, the path of the particle is:

A monochromatic source of light operating at $15$ kW emits $2.5\times 10^{22}$ photons/s. The region of an electromagnetic spectrum to which the emitted electromagnetic radiation belongs to ________. (Take $h=6.6\times 10^{-34}$ J·s and $c=3\times 10^8$ m/s).

An electromagnetic wave of frequency 100 MHz propagates through a medium of conductivity, $\sigma=10 \mathrm{mho} / \mathrm{m}$. The ratio of maximum conduction current density to maximum displacement current density is $\_\_\_\_$. $\left[\text{Take }\frac{1}{4 \pi \epsilon_{\mathrm{o}}}=9 \times 10^{9} \mathrm{Nm}^{2} / \mathrm{C}^{2}\right]$
