JEE Main 2014 — Physics Electromagnetism

2014mcqhard

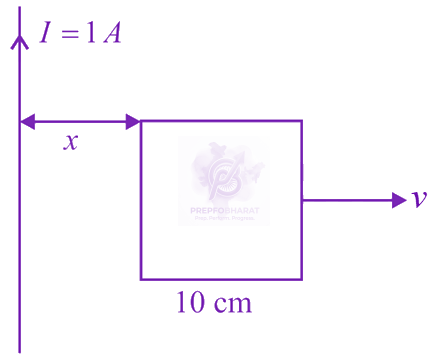

A square frame of side $10\mathrm{cm}$ and a long straight wire carrying current $1A$ are in the plane of the paper. Starting from close to the wire, the frame moves towards the right with a constant speed of $10m{s}^{-1}$ (see figure). The e.m.f induced at the time the left arm of the frame is at $x=10\mathrm{cm}$ from the wire is

JEE Main 2014 Physics, Electromagnetic Induction — question figure

Official previous-year question

Held on 19 Apr 2014 · Verified 6 Jul 2026.

Options

A
$0.75\mu V$
B
$1 \mu V$
C
$2 \mu V$
D
$0.5\mu V$

Did you get this right?

Solution

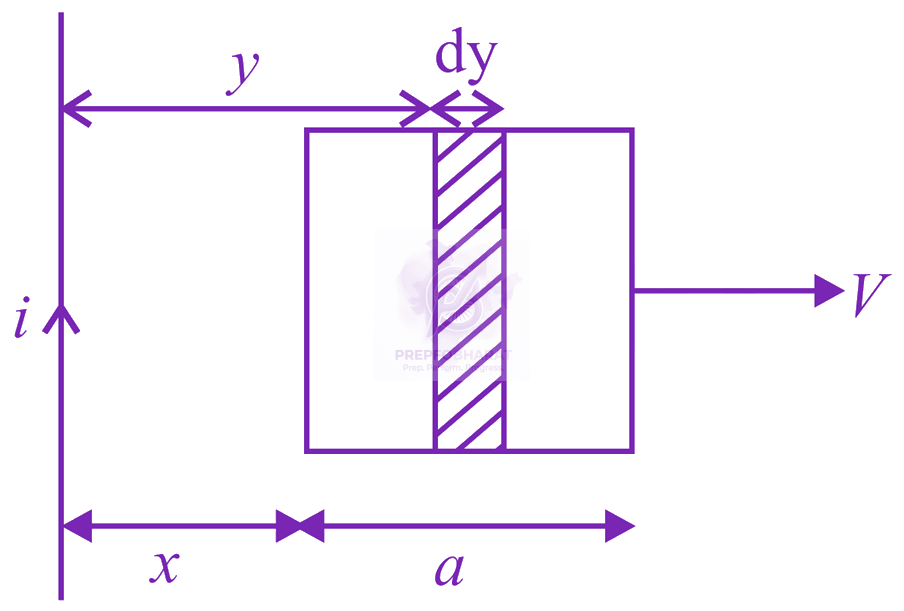

JEE Main 2014 Physics, Electromagnetic Induction — solution figure 1

$d\phi =\frac{{\mu }_{0}i}{2\pi y}ady$

$\phi =\frac{{\mu }_{0}ia}{2\pi }\int _{x}^{x+a}\frac{dy}{y}=\frac{{\mu }_{0}ia}{2\pi }[ln(x+a)-lnx]$

$\text{E.m.f}=-\frac{d\phi }{dt}=-\frac{{\mu }_{0}ia}{2\pi }[\frac{1}{x+a}\frac{dx}{dt}-\frac{1}{x}\frac{dx}{dt}]$

$=\frac{{\mu }_{0}ia}{2\pi }\frac{a.v}{x(x+a)}=\frac{{\mu }_{0}}{2\pi }.\frac{i{a}^{2}v}{x(x+a)}=2\times {10}^{-7}\times \frac{1\times ({0.1}^{2}\times 10)}{0.1\times 0.2}=1\mu V$

Alternative method:

Consider two sides which are perpendicular to the velocity as case of motional e.m.f.

JEE Main 2014 Physics, Electromagnetic Induction — solution figure 2

$E={E}_{1}-{E}_{2}=({B}_{1}–{B}_{2})Vl$

$=\frac{{\mu }_{0}I}{2\pi }(\frac{1}{x}-\frac{1}{x+a})Vl$

$=2\times {10}^{-7}\times 1(\frac{1}{0.1}-\frac{1}{0.2})\times 10\times 0.1$

$={10}^{-6}V=1 \mu V$
