JEE Main 2022 — Physics Optics

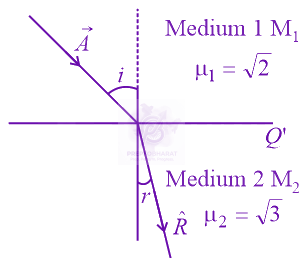

The X−Y plane be taken as the boundary between two transparent media M1 and M2. M1 in Z≥0 has a refractive index of 2 and M2 with Z<0 has a refractive index of 3. A ray of light travelling in M1 along the direction given by the vector A=43i−33j−5k^, is incident on the plane of separation. The value of difference between the angle of incident in M1 and the angle of refraction in M2 will be _____ degree.
Held on 29 Jul 2022 · Verified 6 Jul 2026.
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
For a transparent prism, if the angle of minimum deviation is equal to its refracting angle, the refractive index $n$ of the prism satisfies.
A parallel beam of light travelling in air (refractive index 1.0) is incident on a convex spherical glass surface of radius of curvature 50 cm. Refractive index of glass is 1.5. The rays converge to a point at a distance $x \mathrm{~cm}$ from the centre of the curvature of the spherical surface. The value of $x$ is $\_\_\_\_$ cm.
A thin convex lens of focal length 5 cm and a thin concave lens of focal length 4 cm are combined together (without any gap) and this combination has magnification $m_{1}$ when an object is placed 10 cm before the convex lens. Keeping the positions of convex lens and object undisturbed a gap of 1 cm is introduced between the lenses by moving the concave lens away, which lead to a change in magnification of total lens system to $m_{2}$. The value of $\left|\frac{m_{1}}{m_{2}}\right|$ is $\_\_\_\_$.
As shown in the diagram, when the incident ray is parallel to base of the prism, the emergent ray grazes along the second surface.  If refractive index of the material of prism is $\sqrt{2}$, the angle $\theta$ of prism is.
The size of the images of an object, formed by a thin lens are equal when the object is placed at two different positions 8 cm and 24 cm from the lens. The focal length of the lens is $\_\_\_\_$ cm.
