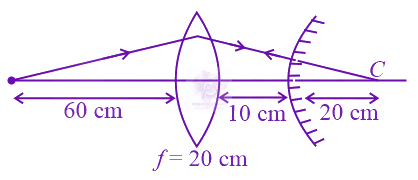

A convex lens of focal length 20cm is placed in front of convex mirror with principal axis coinciding each other. The distance between the lens and mirror is 10cm. A point object is placed on principal axis at a distance of 60cm from the convex lens. The image formed by combination coincides the object itself. The focal length of the convex mirror is _____ cm.
Held on 25 Jul 2022 · Verified 6 Jul 2026.
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
Which of the following are true for a single slit diffraction? A. Width of central maxima increases with increase in wavelength keeping slit width constant. B. Width of central maxima increases with decrease in wavelength keeping slit width constant. C. Width of central maxima increases with decrease in slit width at constant wavelength. D. Width of central maxima increases with increase in slit width at constant wavelength. E. Brightness of central maxima increases for decrease in wavelength at constant slit width.
In parallax method for the determination of focal length of a concave mirror, the object should always be placed:
A slit of width $a$ is illuminated by light of wavelength $\lambda$. The linear separation between $1^{st}$ and $3^{rd}$ minima in the diffraction pattern produced on a screen placed at a distance $D$ from the slit system is _____.
A beam of light consisting of wavelengths 650 nm and 550 nm illuminates the Young's double slits with separation of 2 mm such that the interference fringes are formed on a screen, placed at a distance of 1.2 m from the slits. The least distance of a point from the central maximum, where the bright fringes due to both the wavelengths coincide, is $\_\_\_\_$ $\times 10^{-5} \mathrm{~m}$.
A thin prism with angle $5^{\circ}$ of refractive index 1.72 is combined with another prism of refractive index 1.9 to produce dispersion without deviation. The angle of second prism is $\_\_\_\_$.
