Three rays of light, namely red $(R)$, green $(G)$ and blue $(B)$ are incident on the face $PQ$ of a right angled prism $PQR$ as shown in figure. ![JEE Main 2021 Physics, Ray Optics — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Ray_Optics/648b5a69417cc3fb48d67033/question_1__q_648b5a69417cc3fb48d67033__cdn-question-pool.getmarks.app__ced3db70-d3eb-4121-a996-ca3d025ed244-image__338f9cf140_final_ppt_sync.png) The refractive indices of the material of the prism for red, green and blue wavelength are $1.27,1.42$ and $1.49$ respectively. The colour of the ray(s) emerging out of the face $PR$ is :

JEE Main 2021 — Physics Optics

2021mcqeasy

Three rays of light, namely red $(R)$ , green $(G)$ and blue $(B)$ are incident on the face $PQ$ of a right angled prism $PQR$ as shown in figure.

JEE Main 2021 Physics, Ray Optics — question figure

The refractive indices of the material of the prism for red, green and blue wavelength are $1.27,1.42$ and $1.49$ respectively. The colour of the ray(s) emerging out of the face $PR$ is :

Official previous-year question

Held on 18 Mar 2021 · Verified 6 Jul 2026.

Options

A
green
B
red
C
blue and green
D
blue

Did you get this right?

Solution

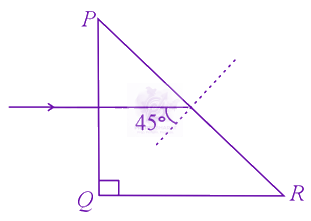

JEE Main 2021 Physics, Ray Optics — solution figure

Assuming that the right angled prism is an isoceles prism, so the other angles will be $45^{\circ}$ each.

$\Rightarrow$ Each incident ray will make an angle of $45^{\circ}$ with the normal at face $PR$ .

$\Rightarrow$ The wavelength corresponding to which the incidence angle is less than the critical angle, will pass through $PR$ .

$\Rightarrow {\theta }_{C}=$ critical angle

$\Rightarrow {\theta }_{C}={\mathrm{sin}}^{-1}(\frac{1}{\mu })$

$\Rightarrow$ If ${\theta }_{C}\geq 45^{\circ}$

the light ray will pass

$\Rightarrow {({\theta }_{C})}_{\mathrm{Red}}={\mathrm{sin}}^{-1}(\frac{1}{1.27})=51.94^{\circ}$

Red will pass.

$\Rightarrow {({\theta }_{C})}_{\mathrm{Green}}={\mathrm{sin}}^{-1}(\frac{1}{1.42})=44.76^{\circ}$

Green will not pass

$\Rightarrow {({\theta }_{C})}_{\mathrm{Blue}}={\mathrm{sin}}^{-1}(\frac{1}{1.49})=42.15^{\circ}$

Blue will not pass

$\Rightarrow$ So only red will pass through $PR$ .
