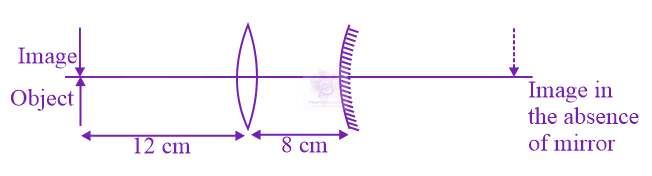

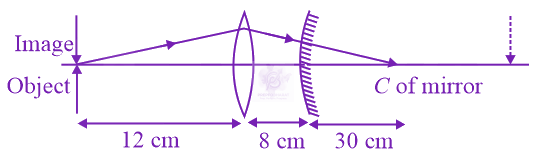

An object is placed at a distance of 12cm from a convex lens. A convex mirror of focal length 15cm is placed on another side of the lens at 8cm as shown in the figure. The image of the object coincides with the object.
When the convex mirror is removed, a real and inverted image is formed at a position. The distance of the image from the object will be ___\mathrm{cm}
Held on 26 Aug 2021 · Verified 6 Jul 2026.
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
When an unpolarized light falls at a particular angle on a glass plate (placed in air), it is observed that the reflected beam is linearly polarized. The angle of refracted beam with respect to the normal is $\_\_\_\_$. $\left(\tan ^{-1}(1.52)=57.7^{\circ}\right.$, refractive indices of air and glass are 1.00 and 1.52, respectively.)
In Young's double slit experiment, the fringe width is β. If the wavelength of light is doubled and the slit separation is halved, the new fringe width is:
A biconvex lens is formed by using two thin planoconvex lenses, as shown in the figure. The refractive index and radius of curved surfaces are also mentioned in figure. When an object is placed on the left side of lens at a distance of 30 cm from the biconvex lens, the magnification of the image will be :
A collimated beam of light of diameter 2 mm is propagating along $x$-axis. The beam is required to be expanded in a collimated beam of diameter 14 mm using a system of two convex lenses. If first lens has focal length 40 mm, then the focal length of second lens is $\_\_\_\_$ mm.
Light ray incident along a vector $\vec{AO}$ $(\vec{AO} = 2\hat{i}-3\hat{j})$ emerges out along vector $\vec{OB}$ $(\vec{OB} = C\hat{i}-4\hat{j})$ as shown in the figure below. The value of $C$ is ________.
Work through every JEE Main Optics PYQ, year by year.
