A hemispherical glass body of radius 10 cm and refractive index 1.5 is silvered on its curved surface. A small air bubble is 6 cm below the flat…

JEE Main 2016 — Physics Optics

2016mcqmedium

A hemispherical glass body of radius 10 cm and refractive index 1.5 is silvered on its curved surface. A small air bubble is 6 cm below the flat surface inside it along the axis. The position of the image of the air bubble made by the mirror is seen :

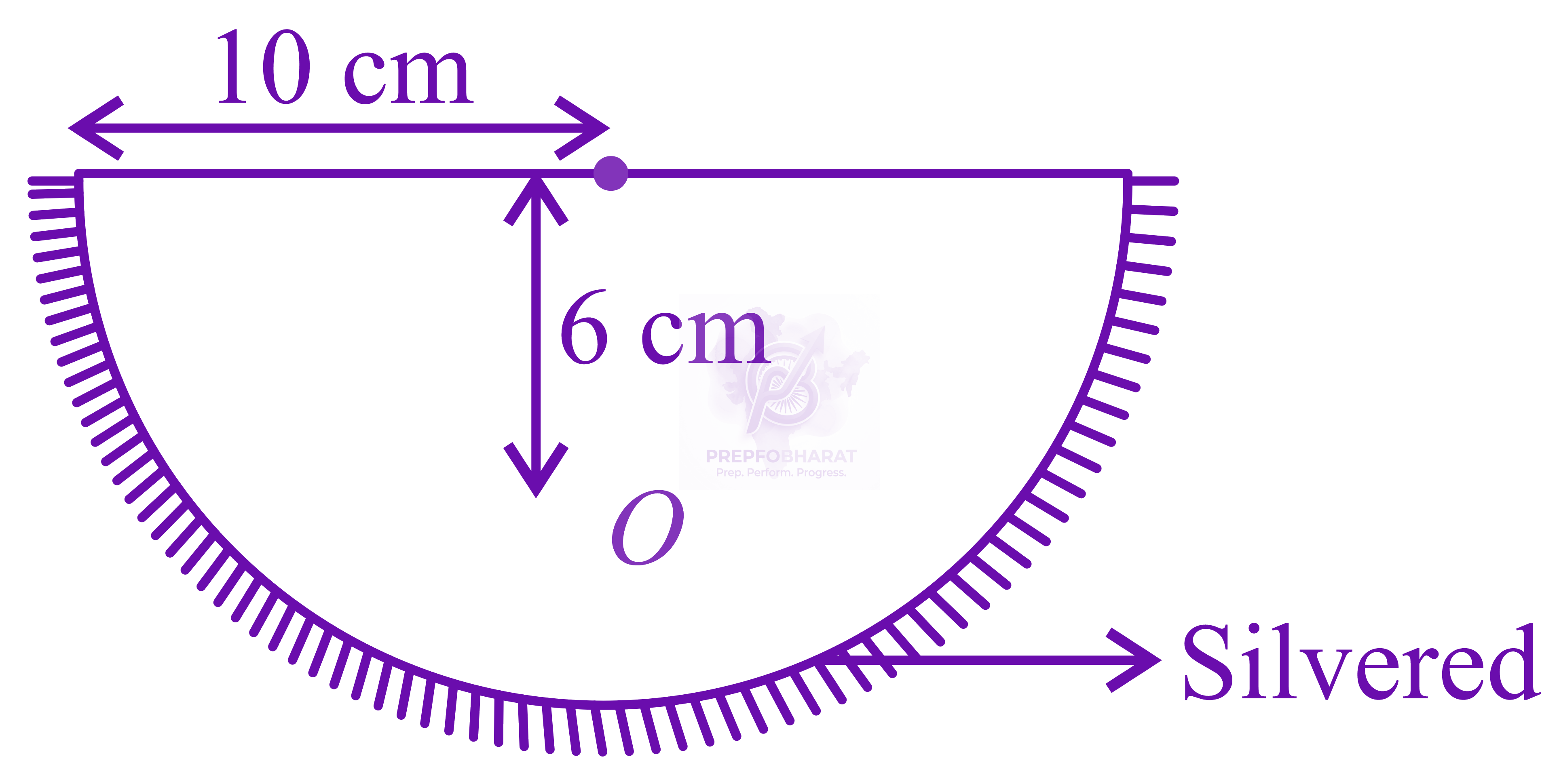

JEE Main 2016 Physics, Ray Optics — question figure

Official previous-year question

Held on 10 Apr 2016 · Verified 6 Jul 2026.

Options

  1. A

    14cm below flat surface

  2. B

    20cm below flat surface

  3. C

    16cm below flat surface

  4. D

    30cm below flat surface
