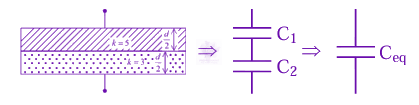

C1=21.77×10−35×4×10−4×8.85×10−12=20pFC2=21.77×10−33×4×10−4×8.85×10−12=12pFCeq=C1+C2C1C2=12+2012×20=7.5pF
Finally equivalent capacitance
(Ceq)final =7.5+7.5=15pF

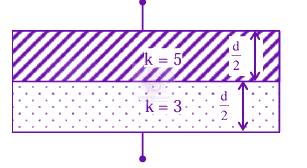

JEE Main 2025 Physics, Capacitance — question figure Space between the plates of a parallel plate capacitor of plate area 4 ~cm^2 and separation of…
JEE Main 2025 — Physics Electromagnetism
2025integerhard
Space between the plates of a parallel plate capacitor of plate area 4 cm2 and separation of (d) 1.77 mm, is filled with uniform dielectric materials with dielectric constants (3 and 5) as shown in figure. Another capacitor of capacitance 7.5 pF is connected in parallel with it. The effective capacitance of this combination is ________ pF. ( Given ε0=8.85×10−12 F/m)
Official previous-year question
Held on 8 Apr 2025 · Verified 6 Jul 2026.
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
