Magnetic moment is given by, M=iA
=5×(0.2)×(0.1)(−i^)
=0.1(−i^)
τ=M×B=0.1(−i^)×(2×10−3)(j^)
=2×10−4(−k^)Nm
JEE Main 2024 — Physics Electromagnetism

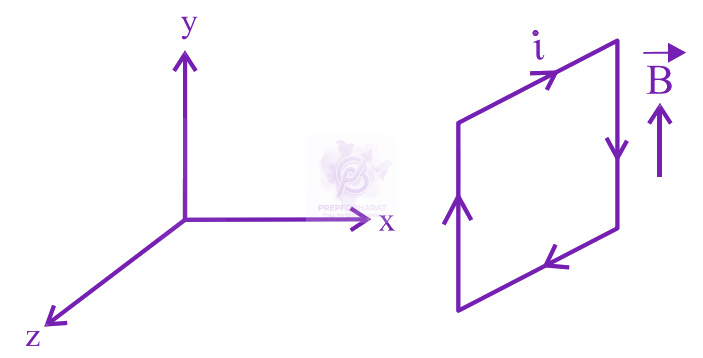

A uniform magnetic field of 2×10−3T acts along positive Y-direction. A rectangular loop of sides 20cm and 10cm with current of 5A is in Y-Z plane. The current is in anticlockwise sense with reference to negative X axis. Magnitude and direction of the torque is :
Held on 31 Jan 2024 · Verified 6 Jul 2026.
2×10−4Nm along positive Z –direction
2×10−4Nm along negative Z-direction
2×10−4Nm along positive X-direction
2×10−4Nm along positive Y-direction
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
A circular loop of radius $20\text{ cm}$ and resistance $2\ \Omega$ is placed in a time varying magnetic field $\vec{B} = (2t^2 + 2t + 3)\text{ T}$. At $t = 0$, for the plane of the loop being perpendicular to the magnetic field and, the induced current in the loop at $t = 3\text{ s}$ is $\dfrac{\alpha}{50}\text{ A}$. The value of $\alpha$ is _______. (Take $\pi = 22/7$)
A particle having charge $10^{-9}$ C moving in $x$-$y$ plane in fields of $0.4\hat{j}$ N/C and $4 \times 10^{-3} \hat{k}$ T experiences a force of $(4\hat{i} + 2\hat{j}) \times 10^{-10}$ N. The velocity of the particle at that instant is _______ m/s.
A current carrying solenoid is placed vertically and a particle of mass $m$ with charge $Q$ is released from rest. The particle moves along the axis of solenoid. If $g$ is acceleration due to gravity then the acceleration (a) of the charged particle will satisfy :
Refer to the figure given below. The values of $I_1$, $I_2$ and $I_3$ are __________.
Identify the correct statements : A. Electrostatic field lines form closed loops. B. The electric field lines point radially outward when charge is greater than zero. C. The Gauss - Law is valid only for inverse - square force. D. The workdone in moving a charged particle in a static electric field around a closed path is zero. E. The motion of a particle under Coulomb's force must take place in a plane. Choose the correct answer from the options given below :
