JEE Main 2023 — Physics Electromagnetism

2023mcqeasy

Two isolated metallic solid spheres of radii $R$ and $2R$ are charged such that both have same charge density $\sigma$ . The spheres are then connected by a thin conducting wire. If the new charge density of the bigger sphere is ${\sigma }^{'}$ . The ratio $\frac{{\sigma }^{'}}{\sigma }$ is :

Official previous-year question

Held on 30 Jan 2023 · Verified 6 Jul 2026.

Options

A
$\frac{9}{4}$
B
$\frac{4}{3}$
C
$\frac{5}{3}$
D
$\frac{5}{6}$

Did you get this right?

Solution

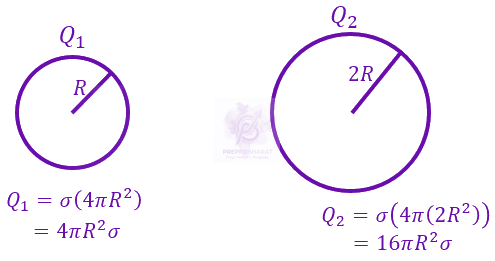

Charge and charge density on both isolated metallic solid spheres are show below.

JEE Main 2023 Physics, Electrostatics — solution figure 1

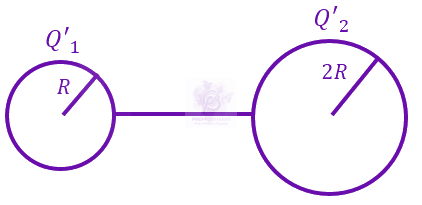

Let the charges and the charge densities on both the spheres after connected by thin conducting wire be ${Q}_{1}^{'},{Q}_{2}^{'},\sigma \text{and}{\sigma }^{'}$ as shown below.

JEE Main 2023 Physics, Electrostatics — solution figure 2

Once connected, charge on both the spheres will redistribute such that potentials at the surface of both spheres is the same.

$\therefore \frac{k{Q}_{1}^{'}}{R}=\frac{k{Q}_{2}^{'}}{2R}$

$\Rightarrow \frac{{Q}_{1}^{'}}{4{\pi \epsilon }_{0}R}=\frac{{Q}_{2}^{'}}{4\pi {\epsilon }_{0}(2R)}$

$\therefore {Q}_{2}^{'}=2{Q}_{1}^{'}$

Using charge conservation,

${Q}_{1}^{'}+{Q}_{2}^{'}={Q}_{1}+{Q}_{2}$

$\therefore \frac{{Q}_{2}^{'}}{2}+{Q}_{2}^{'}=20{\pi R}^{2}\sigma$

$\frac{3}{2}{Q}_{2}^{'}=20{\pi R}^{2}\sigma$

$\therefore \frac{{Q}_{2}^{'}}{4\pi {(2R)}^{2}}=\frac{2}{3}\times \frac{20{\pi R}^{2}\sigma }{16{\pi R}^{2}}$

$\therefore \frac{\sigma '}{\sigma }=\frac{5}{6}$
