As we know, radius of the circular path is given by,
r=qBmv=qB2mK=qB2×m×qV
⇒r2=qB22mV
⇒m=2Vr2qB2=2×100(3×10−2)2×(2×10−6)×(4×10−3)2=144×10−18kg
JEE Main 2023 — Physics Electromagnetism

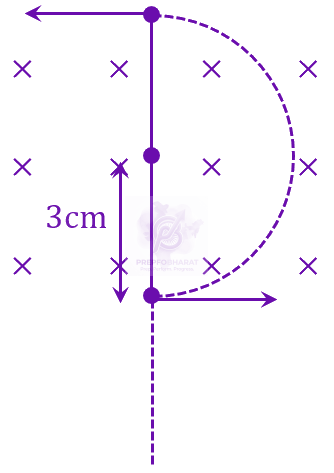

A charge particle of 2μC accelerated by a potential difference of 100V enters a region of uniform magnetic field of magnitude 4mT at right angle to the direction of field. The charge particle completes semicircle of radius 3cm inside magnetic field. The mass of the charge particle is ______ ×10−18kg.
Held on 1 Feb 2023 · Verified 6 Jul 2026.
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
A square loop of side $2$ cm is placed in a time varying magnetic field with magnitude as $B = 0.4\sin(300t)$ Tesla. The normal to the plane of loop makes an angle of $60°$ with the field. The maximum induced emf produced in the loop is __________ mV.
A circular coil of radius $2$ cm and $125$ turns carries a current of $1$ A. The coil is placed in a uniform magnetic field of magnitude $0.4$ T. The axis of the coil makes an angle of $30°$ with the direction of the magnetic field. The torque acting on the coil is $\alpha \times 10^{-4}$ N.m. The value of $\alpha$ is ______. ($\pi=3.14$)
$1\,\mu$C charge moving with velocity $\vec{v} = \left(\hat{i} - 2\hat{j} + 3\hat{k}\right)$ m/s in the region of magnetic field $\vec{B} = \left(2\hat{i} + 3\hat{j} - 5\hat{k}\right)$ T. The magnitude of force acting on it is $\sqrt{\alpha} \times 10^{-6}$ N. The value of $\alpha$ is _______.
A charged particle moves in a uniform magnetic field. If the velocity is perpendicular to the field, the path of the particle is:
Three identical coils $C_{1}, C_{2}$ and $C_{3}$ are closely placed such that they share a common axis. $C_{2}$ is exactly midway. $C_{1}$ carries current $I$ in anti-clockwise direction while $C_{3}$ carries current $I$ in clockwise direction. An induced current flows through $C_{2}$ will be in clockwise direction when
