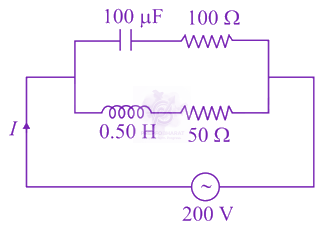

In the given circuit the $\mathrm{AC}$ source has $\omega =100\mathrm{rad}{s}^{-1}$. Considering the inductor and capacitor to be ideal, what will be the current $I$ flowing through the circuit? ![JEE Main 2021 Physics, Alternating Current — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Alternating_Current/648b5a6b417cc3fb48d6740f/question_1__q_648b5a6b417cc3fb48d6740f__cdn-question-pool.getmarks.app__340e7beb-a78e-4ff4-9569-2121298e7805-image__0e23fffd40_final_ppt_sync.png)

${Z}_{C}=\sqrt{{(\frac{1}{\omega C})}^{2}+{R}^{2}}$ $=\sqrt{{(\frac{1}{100\times 100\times {10}^{-6}})}^{2}+{100}^{2}}$ $=\sqrt{{100}^{2}+{100}^{2}}$ $=100\sqrt{2}\Omega$ ${Z}_{L}=\sqrt{(\omega L{)}^{2}+{R}^{2}}=\sqrt{(100\times 0.5{)}^{2}+{50}^{2}}=50\sqrt{2}\Omega$ ${i}_{L}=\frac{200}{{Z}_{L}}=\frac{200}{50\sqrt{2}}=\frac{4}{\sqrt{2}}=2\sqrt{2}\text{A}$ ${i}_{C}=\frac{200}{{Z}_{C}}=\frac{200}{100\sqrt{2}}=\sqrt{2}\text{A}$ $\mathrm{cos}{\phi }_{1}=\frac{100}{100\sqrt{2}}=\frac{1}{\sqrt{2}},{\phi }_{1}=45^{\circ}$ $\mathrm{cos}{\phi }_{2}=\frac{50}{50\sqrt{2}}=\frac{1}{\sqrt{2}},{\phi }_{2}=45^{\circ}$ ![JEE Main 2021 Physics, Alternating Current — solution figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Alternating_Current/648b5a6b417cc3fb48d6740f/solution_1__q_648b5a6b417cc3fb48d6740f__cdn-question-pool.getmarks.app__998ea0dc-cb5f-43a5-8398-0cd23b89328a-image__f04b5af419_final_ppt_sync.png) $I=\sqrt{{I}_{C}^{2}+{I}_{L}^{2}};I=\sqrt{8+2};I=\sqrt{10}=3.16A$ This question is bonus as the correct answer was not available for students to mark as option in original paper by NTA.

In the given circuit the AC source has ω… - JEE Main 2021 Physics PYQ

JEE Main 2021 — Physics Electromagnetism

2021mcqhard

In the given circuit the $\mathrm{AC}$ source has $\omega =100\mathrm{rad}{s}^{-1}$ . Considering the inductor and capacitor to be ideal, what will be the current $I$ flowing through the circuit?

JEE Main 2021 Physics, Alternating Current — question figure

Official previous-year question

Held on 26 Aug 2021 · Verified 6 Jul 2026.

Options

A
$5.9A$
B
$6A$
C
$0.94A$
D
$3.16A$

Did you get this right?

Solution

${Z}_{C}=\sqrt{{(\frac{1}{\omega C})}^{2}+{R}^{2}}$

$=\sqrt{{(\frac{1}{100\times 100\times {10}^{-6}})}^{2}+{100}^{2}}$

$=\sqrt{{100}^{2}+{100}^{2}}$

$=100\sqrt{2}\Omega$

${Z}_{L}=\sqrt{(\omega L{)}^{2}+{R}^{2}}=\sqrt{(100\times 0.5{)}^{2}+{50}^{2}}=50\sqrt{2}\Omega$

${i}_{L}=\frac{200}{{Z}_{L}}=\frac{200}{50\sqrt{2}}=\frac{4}{\sqrt{2}}=2\sqrt{2}\text{A}$

${i}_{C}=\frac{200}{{Z}_{C}}=\frac{200}{100\sqrt{2}}=\sqrt{2}\text{A}$

$\mathrm{cos}{\phi }_{1}=\frac{100}{100\sqrt{2}}=\frac{1}{\sqrt{2}},{\phi }_{1}=45^{\circ}$

$\mathrm{cos}{\phi }_{2}=\frac{50}{50\sqrt{2}}=\frac{1}{\sqrt{2}},{\phi }_{2}=45^{\circ}$

JEE Main 2021 Physics, Alternating Current — solution figure

$I=\sqrt{{I}_{C}^{2}+{I}_{L}^{2}};I=\sqrt{8+2};I=\sqrt{10}=3.16A$

This question is bonus as the correct answer was not available for students to mark as option in original paper by NTA.
