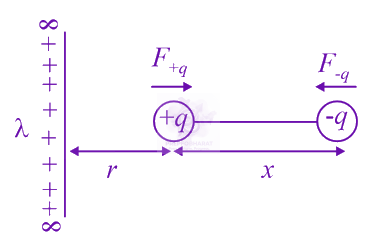

r=10mm,x=2,
∣Fq∣=r2kλ⋅q
∣F−q∣=r+x2kλ⋅q
∣Fnet∣=r(r+x)2kλq⋅x
4=10mm.12mm2×9×109×3×10−6×q×2mm
⇒q=4.44μC
JEE Main 2021 — Physics Electromagnetism
An electric dipole is placed on x−axis in proximity to a line charge of linear charge density 3.0×10−6Cm−1. Line charge is placed on z−axis and positive and negative charge of dipole is at a distance of 10mm and 12mm from the origin respectively. If total force of 4N is exerted on the dipole, find out the amount of positive or negative charge of the dipole.
Held on 22 Jul 2021 · Verified 6 Jul 2026.
815.1nC
8.8μC
0.485mC
4.44μC
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
A circular loop of radius $20\text{ cm}$ and resistance $2\ \Omega$ is placed in a time varying magnetic field $\vec{B} = (2t^2 + 2t + 3)\text{ T}$. At $t = 0$, for the plane of the loop being perpendicular to the magnetic field and, the induced current in the loop at $t = 3\text{ s}$ is $\dfrac{\alpha}{50}\text{ A}$. The value of $\alpha$ is _______. (Take $\pi = 22/7$)
A particle having charge $10^{-9}$ C moving in $x$-$y$ plane in fields of $0.4\hat{j}$ N/C and $4 \times 10^{-3} \hat{k}$ T experiences a force of $(4\hat{i} + 2\hat{j}) \times 10^{-10}$ N. The velocity of the particle at that instant is _______ m/s.
A current carrying solenoid is placed vertically and a particle of mass $m$ with charge $Q$ is released from rest. The particle moves along the axis of solenoid. If $g$ is acceleration due to gravity then the acceleration (a) of the charged particle will satisfy :
Refer to the figure given below. The values of $I_1$, $I_2$ and $I_3$ are __________.
Identify the correct statements : A. Electrostatic field lines form closed loops. B. The electric field lines point radially outward when charge is greater than zero. C. The Gauss - Law is valid only for inverse - square force. D. The workdone in moving a charged particle in a static electric field around a closed path is zero. E. The motion of a particle under Coulomb's force must take place in a plane. Choose the correct answer from the options given below :
