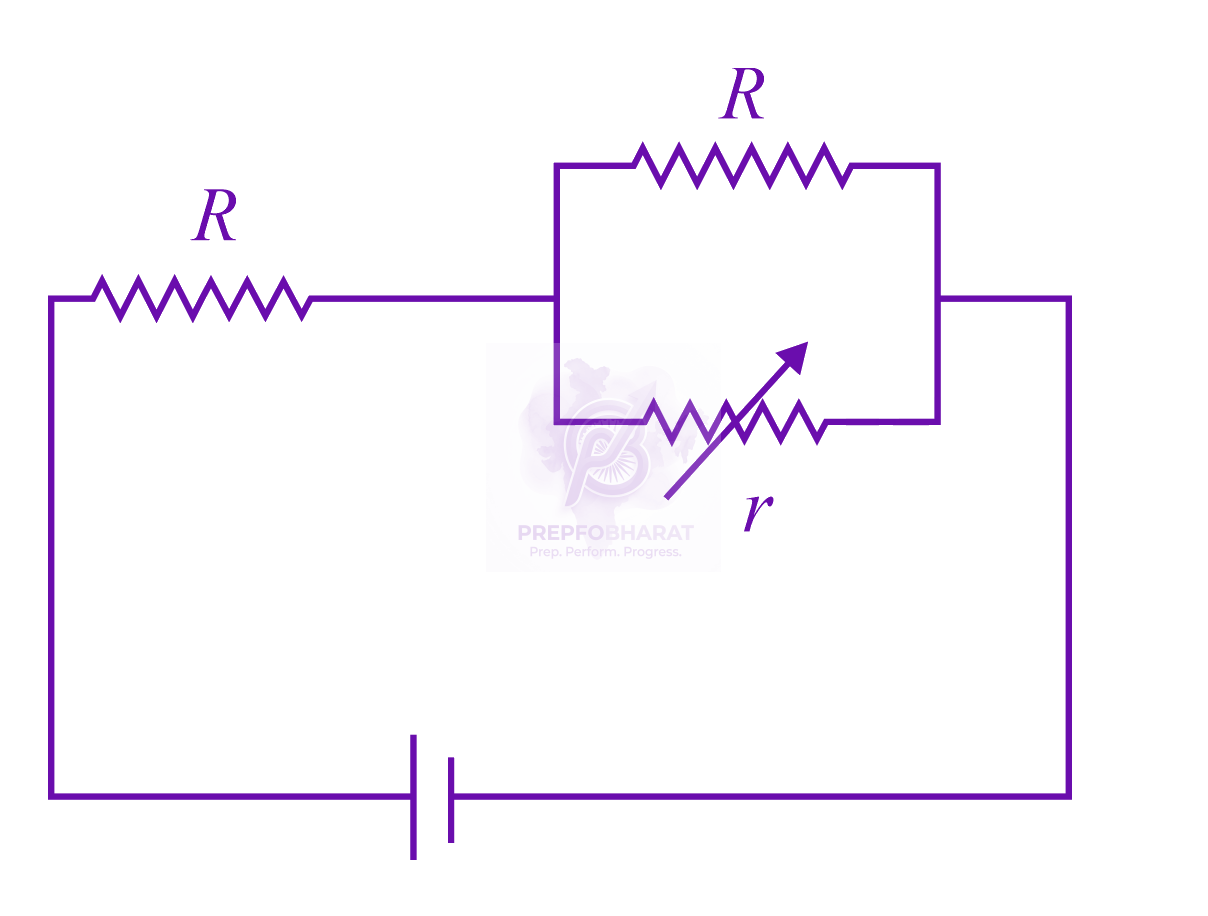

![JEE Main 2016 Physics, Current Electricity — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Current_Electricity/648b5a64417cc3fb48d6603c/question_1__q_648b5a64417cc3fb48d6603c__cdn-question-pool.getmarks.app__3605a536-52e2-40a1-a35a-b57290688e40-image__c56fdcb473_final_ppt_sync.png) In the circuit shown, the resistance r is a variable resistance. If for $r=fR$ , the heat generation in r is maximum then the value of $f$ is

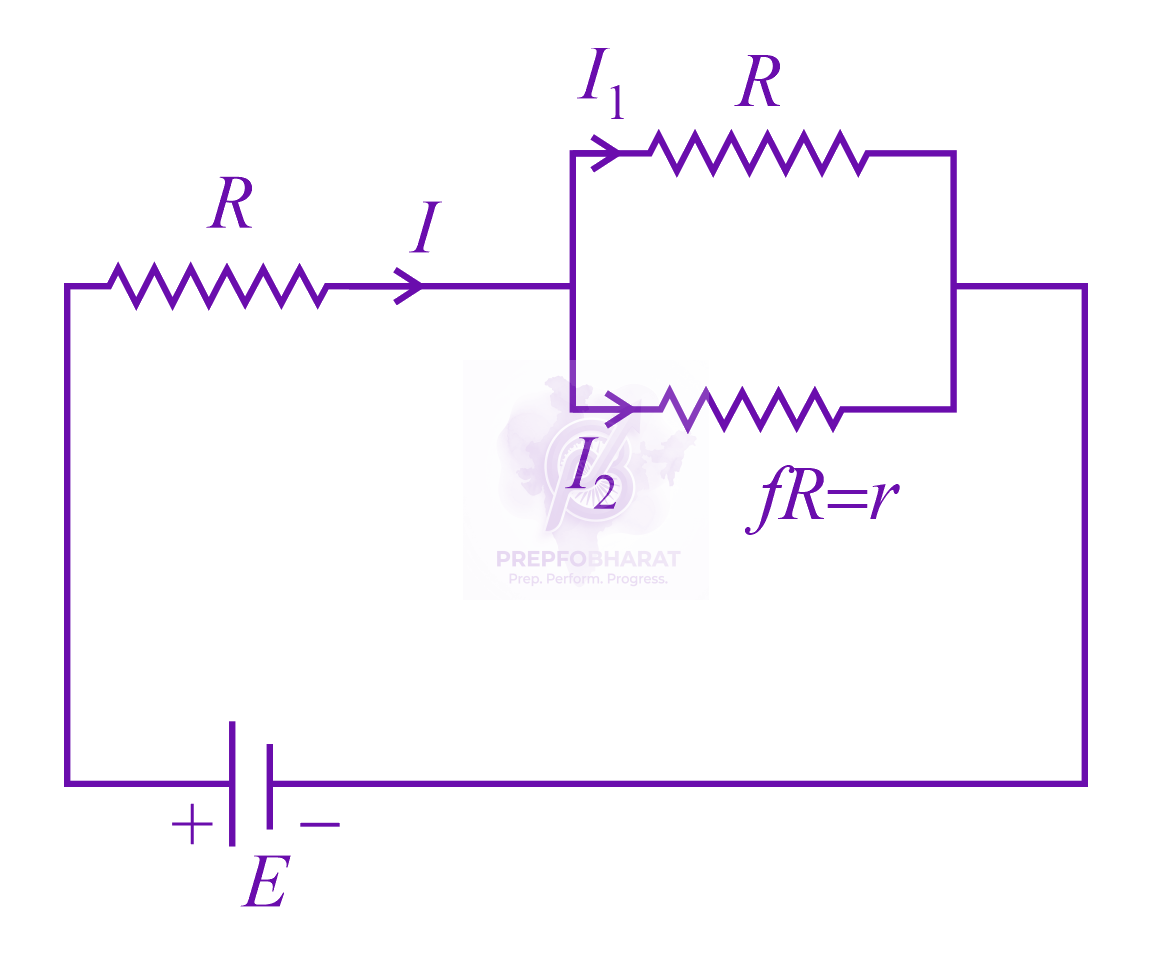

![JEE Main 2016 Physics, Current Electricity — solution figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Current_Electricity/648b5a64417cc3fb48d6603c/solution_1__q_648b5a64417cc3fb48d6603c__cdn-question-pool.getmarks.app__48c4dc1d-26ba-4f5b-8deb-ec5298878fc0-image__70187e91ce_final_ppt_sync.png) Power in “r” $P={I}_{2}^{2} r={ [ I\times \frac{R}{ R+r} ]}^{2} r={I}^{2} \frac{ {R}^{2} r}{ { ( R+r )}^{2} }$ $P={ [ \frac{E}{ R+\frac{ R\times fR}{ R+fR} } ]}^{2} \frac{ {R}^{2} ( fR )}{ { ( R+fR )}^{2} } =\frac{ {E}^{2} {R}^{2} fR}{ {R}^{2} { [ 1+\frac{f}{ ( f+1 )} ]}^{2} {R}^{2} { ( 1+f )}^{2} }$ $P=\frac{ {E}^{2} f}{ R{ ( 1+2f )}^{2} }$ For $P( \mathrm{max} ) \frac{ dP}{ df} =0$ $\frac{ {E}^{2} }{R} =[ \frac{ { ( 1+2f )}^{2} -f{ 2( 1+2f )( 0+2 ) }}{ { ( 1+2f )}^{2} } ]=0$ ${ ( 1+2f )}^{2} =4f( 1+2f )$ $1+2f=4f$ $f=\frac{1}{2}$

JEE Main 2016 — Physics Electromagnetism

2016mcqmedium

JEE Main 2016 Physics, Current Electricity — question figure

In the circuit shown, the resistance r is a variable resistance. If for $r=fR$ , the heat generation in r is maximum then the value of $f$ is

Official previous-year question

Held on 9 Apr 2016 · Verified 6 Jul 2026.

Options

A
$\frac{1}{2}$
B
$1$
C
$\frac{1}{4}$
D
$\frac{3}{4}$

Did you get this right?

Solution

JEE Main 2016 Physics, Current Electricity — solution figure

Power in “r”

$P={I}_{2}^{2} r={ [ I\times \frac{R}{ R+r} ]}^{2} r={I}^{2} \frac{ {R}^{2} r}{ { ( R+r )}^{2} }$

$P={ [ \frac{E}{ R+\frac{ R\times fR}{ R+fR} } ]}^{2} \frac{ {R}^{2} ( fR )}{ { ( R+fR )}^{2} } =\frac{ {E}^{2} {R}^{2} fR}{ {R}^{2} { [ 1+\frac{f}{ ( f+1 )} ]}^{2} {R}^{2} { ( 1+f )}^{2} }$

$P=\frac{ {E}^{2} f}{ R{ ( 1+2f )}^{2} }$

For $P( \mathrm{max} ) \frac{ dP}{ df} =0$

$\frac{ {E}^{2} }{R} =[ \frac{ { ( 1+2f )}^{2} -f{ 2( 1+2f )( 0+2 ) }}{ { ( 1+2f )}^{2} } ]=0$

${ ( 1+2f )}^{2} =4f( 1+2f )$

$1+2f=4f$

$f=\frac{1}{2}$
