JEE Main 2015 — Physics Electromagnetism

2015mcqhard

A wire of length $L=20 cm$ is bent into a semi-circular arc and the two equal halves of the arc are uniformly charged with charges $+Q$ and $-Q$ as shown in the figure. The magnitude of the charge on each half is $|Q|={10}^{3}{\epsilon }_{0}$ , where ${\epsilon }_{0}$ is the permittivity of free the space. The net electric field at the centre $O$ is

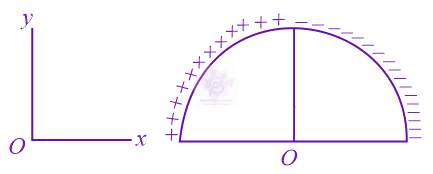

JEE Main 2015 Physics, Electrostatics — question figure

Official previous-year question

Held on 11 Apr 2015 · Verified 6 Jul 2026.

Options

A
$(25\times {10}^{3})\hat{i}N{C}^{-1}$
B
$(50\times {10}^{3})\hat{i}N{C}^{-1}$
C
$(25\times {10}^{3})\hat{j}N{C}^{-1}$
D
$(50\times {10}^{3})\hat{j}N{C}^{-1}$

Did you get this right?

Solution

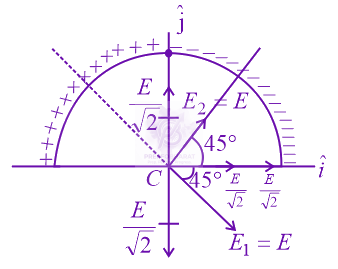

JEE Main 2015 Physics, Electrostatics — solution figure 1

$L=\pi R$

$\Rightarrow R=\frac{L}{\pi } =\frac{ 20}{ 100\pi } \text{m}=\frac{1}{ 5\pi } \text{m}$

$\Rightarrow$ due to a charge arc, electric field at centre is given by

$E=\frac{ 2K\lambda }{R} \mathrm{sin}\frac{\theta }{2}$

JEE Main 2015 Physics, Electrostatics — solution figure 2

${E}_{1}={E}_{2}=\frac{2k⋋}{R}\mathrm{sin}⁡\frac{90}{2} {⋋=\frac{Q}{\pi R/2}}$

undefined

Component along $\hat{j}$ gets cancelled and

${E}_{ net} =\sqrt{ 2 } {E}_{1}$

$=\frac{ 4KQ}{ \pi {R}^{2} }$

$=\frac{4\times 1({10}^{3}{\epsilon }_{0})}{4\pi {\epsilon }_{0} \pi {R}^{2}}=\frac{4\times {10}^{3}{\epsilon }_{0}}{4{\pi }^{2}{\epsilon }_{0}{R}^{2}}=\frac{{10}^{2}}{{R}^{2}}=\frac{100}{{(\frac{1}{5\pi })}^{2}}=25\times {10}^{3}$

${\vec{E}}_{net}=25\times {10}^{3}N{C}^{-1} \hat{i}$
