JEE Main 2015 — Physics Electromagnetism

2015mcqhard

A thin disc of radius $b=2a$ has a concentric hole of radius $a$ in it (see figure). It carries uniform surface charge $\sigma$ on it. If the electric field on its axis at a height $\text{h}(\text{h}<<\text{a})$ from its centre is given as $\text{C}\text{h}$ then the value of $C$ is

JEE Main 2015 Physics, Electrostatics — question figure

Official previous-year question

Held on 10 Apr 2015 · Verified 6 Jul 2026.

Options

A
$\frac{\sigma }{4 a{\epsilon }_{0}}$
B
$\frac{\sigma }{a{\epsilon }_{0}}$
C
$\frac{\sigma }{5a{\epsilon }_{0}}$
D
$\frac{\sigma }{2a{\epsilon }_{0}}$

Did you get this right?

Solution

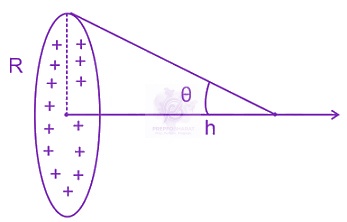

$\because$ At the axial point of a uniformly charged disc electric field is given by,

$E=\frac{\sigma }{2{\epsilon }_{0}}(1-cos\theta )$

JEE Main 2015 Physics, Electrostatics — solution figure 1

By superposition principle, when inner disc is removed , then, electric field due to remaining disc is,

JEE Main 2015 Physics, Electrostatics — solution figure 2

$E=\frac{\sigma }{2{\epsilon }_{0}} [(1-cos{\theta }_{2})-(1-cos{\theta }_{1})]$

$=\frac{\sigma }{2{\epsilon }_{0}}[cos{\theta }_{1}-cos{\theta }_{2}]$

$=\frac{\sigma }{2{\epsilon }_{0}}[\frac{h}{\sqrt{{h}^{2}+{a}^{2} }}-\frac{h}{\sqrt{{h}^{2}+{b}^{2}}}]$

$=\frac{\sigma }{2{\epsilon }_{0}}[\frac{h}{a\sqrt{1+\frac{{h}^{2}}{{a}^{2}}}}-\frac{h}{b\sqrt{1+\frac{{h}^{2}}{{b}^{2}} }}]$

$\because h \ll a$ and b.

$\therefore E=\frac{\sigma }{2{\epsilon }_{0}}[\frac{h}{a}-\frac{h}{b}]$

$=\frac{\sigma }{2{\epsilon }_{0}}[\frac{h}{a}-\frac{h}{2a}]=\frac{\sigma h}{4{\epsilon }_{0}a}$

$\Rightarrow C=\frac{\sigma }{4{a\epsilon }_{0}}$ .
