A simple harmonic oscillator has an… - JEE Main 2024 Physics PYQ

JEE Main 2024 — Physics Waves & Oscillations

2024integermedium

A simple harmonic oscillator has an amplitude $A$ and time period $6\pi$ second. Assuming the oscillation starts from its mean position, the time required by it to travel from $x=A$ to $x=\frac{\sqrt{3}}{2}A$ will be $\frac{\pi }{x}s$ , where $x=_______.$

Official previous-year question

Held on 29 Jan 2024 · Verified 6 Jul 2026.

Did you get this right?

Solution

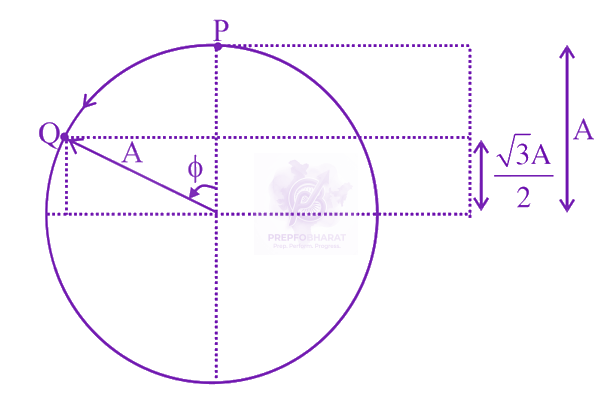

JEE Main 2024 Physics, Oscillations — solution figure

From phasor diagram particle has to move from $P$ to $Q$ in a circle of radius equal to amplitude of $\mathrm{SHM}$ .

$\mathrm{cos}\phi =\frac{\frac{\sqrt{3}A}{2}}{A}=\frac{\sqrt{3}}{2}$

$\Rightarrow \phi =\frac{\pi }{6}$

Now, $\frac{\pi }{6}=\omega t$

$\Rightarrow \frac{\pi }{6}=\frac{2\pi }{T}t$

$\Rightarrow \frac{\pi }{6}=\frac{2\pi }{6\pi }t$

$\Rightarrow t=\frac{\pi }{2}$

So, $x=2$

Your note

JEE Main Waves & Oscillations in other years

Waves & Oscillations 2026 Waves & Oscillations 2025 Waves & Oscillations 2023 Waves & Oscillations 2022 Waves & Oscillations 2021 Waves & Oscillations 2020 Waves & Oscillations 2019 Waves & Oscillations 2018 Waves & Oscillations 2017 Waves & Oscillations 2016 Waves & Oscillations 2015 Waves & Oscillations 2014

More JEE Main Waves & Oscillations questions

The time period of a simple harmonic oscillator is $T=2 \pi \sqrt{\frac{k}{m}}$. Measured value of mass $(m)$ of the object is 10 g with an accuracy of 10 mg and time for 50 oscillations of the spring is found to be 60 s using a watch of 2 s resolution. Percentage error in determination of spring constant $(k)$ is $\_\_\_\_$ \%.

2026medium

Two waves of same frequency and amplitude travel in opposite directions. The resulting pattern is:

2026easy

A spring-mass system oscillates with angular frequency ω. If the mass is doubled and the spring constant is halved, the new angular frequency is:

2026hard

In an open organ pipe $\nu_{3}$ and $\nu_{6}$ are $3^{\text {rd }}$ and $6^{\text {th }}$ harmonic frequencies, respectively. If $\nu_{6}-\nu_{3}=2200 \mathrm{~Hz}$ then length of the pipe is $\_\_\_\_$ mm . (Take velocity of sound in air is $330 \mathrm{~m} / \mathrm{s}$.)

2026easy

A simple pendulum of string length 30 cm performs 20 oscillations in 10 s. The length of the string required for the pendulum to perform 40 oscillations in the same time duration is $\_\_\_\_$ cm. [Assume that the mass of the pendulum remains same.]

2026easy
