In the figure given below. a block of mass… - JEE Main 2023 Physics PYQ

JEE Main 2023 — Physics Waves & Oscillations

2023integerhard

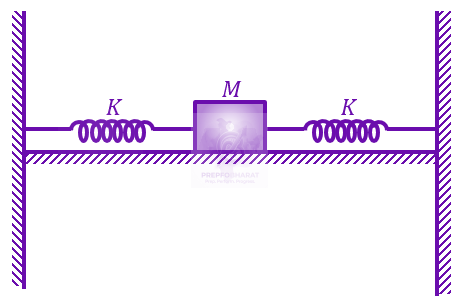

In the figure given below. a block of mass $M=490g$ placed on a frictionless table is connected with two springs having same spring constant ( $K=2N{m}^{-1}$ ). If the block is horizontally displaced through $X$ $m$ then the number of complete oscillations it will make in $14\pi$ seconds will be ______.

JEE Main 2023 Physics, Oscillations — question figure

Official previous-year question

Held on 31 Jan 2023 · Verified 6 Jul 2026.

Did you get this right?

Solution

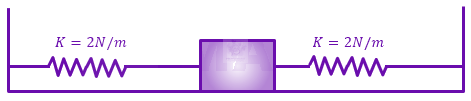

JEE Main 2023 Physics, Oscillations — solution figure

Both the springs are connected in parallel, therefore

${K}_{eq}=K+K=2K$

Now, time period of spring-block system is given by,

$T=2\pi \sqrt{\frac{m}{{K}_{eq}}} =2\pi \sqrt{\frac{m}{2K}}$

Given here, $m=490\mathrm{gm}$ $=0.49\mathrm{kg}$ and $K=2N{m}^{-1}$

So, $T=2\pi \sqrt{\frac{0.49}{2\times 2}}$

$=2\pi \sqrt{\frac{49}{400}}=2\pi \frac{7}{20}=\frac{7\pi }{10}$

Now, number of oscillation in $14\pi$ is

$N=\frac{\mathrm{time}}{T}=\frac{14\pi }{\frac{7\pi }{10}}=20$
