Keq=K1+K2=K+K=2K
T=2πKeqm=2π2Km
f=T1=2π1m2K
JEE Main 2021 — Physics Waves & Oscillations
2021mcqmedium

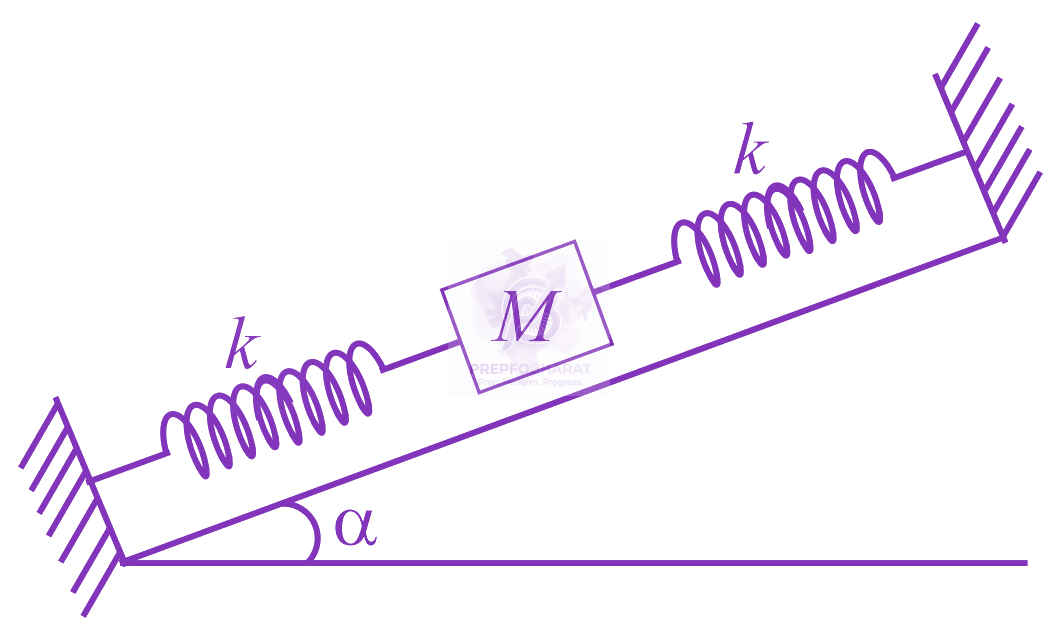

In the given figure, a body of mass M is held between two massless springs, on a smooth inclined plane. The free ends of the springs are attached to firm supports. If each spring has spring constant k, the frequency of oscillation of given body is:
Official previous-year question
Held on 24 Feb 2021 · Verified 6 Jul 2026.
Options
- A
2π1Mgsinα2k
- B
2π1Mgksinα
- C
2π12Mk
- D
2π1M2k
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
JEE Main Waves & Oscillations in other years
Waves & Oscillations 2026Waves & Oscillations 2025Waves & Oscillations 2024Waves & Oscillations 2023Waves & Oscillations 2022Waves & Oscillations 2020Waves & Oscillations 2019Waves & Oscillations 2018Waves & Oscillations 2017Waves & Oscillations 2016Waves & Oscillations 2015Waves & Oscillations 2014
More JEE Main Waves & Oscillations questions
The equation of a plane progressive wave is given by $y = 5\cos\pi\left(200t - \dfrac{x}{150}\right)$ where $x$ and $y$ are in cm and $t$ is in second. The velocity of the wave is _______ m/s.
2026easy
A transverse wave on a string is described by $y = 3\sin(36t + 0.018x + \pi/4)$, where $x, y$ are in cm and $t$ in seconds. The least distance between the two successive crests in the wave is _____ cm. (Nearest integer) ($\pi = 3.14$)
2026easy
Two waves of same frequency and amplitude travel in opposite directions. The resulting pattern is:
2026easy
A spring-mass system oscillates with angular frequency ω. If the mass is doubled and the spring constant is halved, the new angular frequency is:
2026hard
The time period of a simple harmonic oscillator is $T=2 \pi \sqrt{\frac{k}{m}}$. Measured value of mass $(m)$ of the object is 10 g with an accuracy of 10 mg and time for 50 oscillations of the spring is found to be 60 s using a watch of 2 s resolution. Percentage error in determination of spring constant $(k)$ is $\_\_\_\_$ \%.
2026medium
