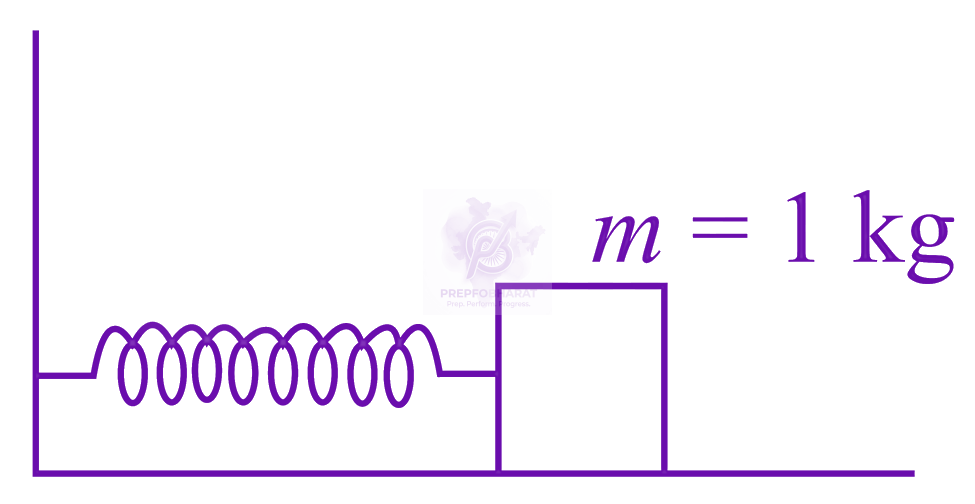

The frequency of 1kg block is f=2π1mk=1Hz
4π2=mk,m=1
Spring constant, k=4π2

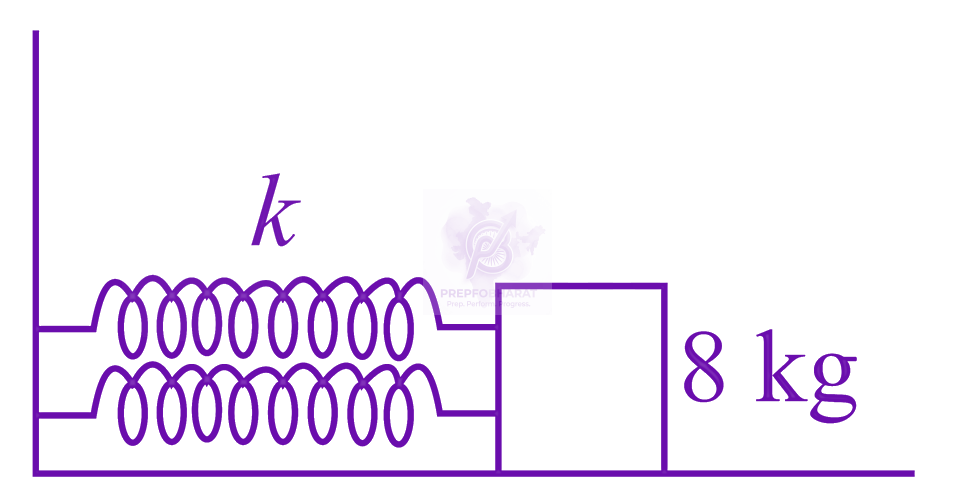

In parallel connection of springs, the equivalent spring constant is keq=2k.
f=2π18K×2
Frequency of 8kg block is=21Hz
JEE Main 2017 — Physics Waves & Oscillations
A 1kg block attached to a spring vibrates with a frequency of 1Hz on a frictionless horizontal table. Two springs identical to the original spring are attached in parallel to a8kgblock placed on the same table. So, the frequency of vibration of the 8kg block is
Held on 8 Apr 2017 · Verified 6 Jul 2026.
2Hz
41Hz
221Hz
21Hz
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
In an open organ pipe $\nu_{3}$ and $\nu_{6}$ are $3^{\text {rd }}$ and $6^{\text {th }}$ harmonic frequencies, respectively. If $\nu_{6}-\nu_{3}=2200 \mathrm{~Hz}$ then length of the pipe is $\_\_\_\_$ mm . (Take velocity of sound in air is $330 \mathrm{~m} / \mathrm{s}$.)
A transverse wave on a string is described by $y = 3\sin(36t + 0.018x + \pi/4)$, where $x, y$ are in cm and $t$ in seconds. The least distance between the two successive crests in the wave is _____ cm. (Nearest integer) ($\pi = 3.14$)
Two waves of same frequency and amplitude travel in opposite directions. The resulting pattern is:
A spring-mass system oscillates with angular frequency ω. If the mass is doubled and the spring constant is halved, the new angular frequency is:
The time period of a simple harmonic oscillator is $T=2 \pi \sqrt{\frac{k}{m}}$. Measured value of mass $(m)$ of the object is 10 g with an accuracy of 10 mg and time for 50 oscillations of the spring is found to be 60 s using a watch of 2 s resolution. Percentage error in determination of spring constant $(k)$ is $\_\_\_\_$ \%.
