Two thermodynamical process are shown in the figure. The molar heat capacity for process $A$ and $B$ are ${C}_{A}$ and ${C}_{B}$ . The molar heat capacity at constant pressure and constant volume are represented by ${C}_{P}$ and ${C}_{V}$ , respectively. Choose the correct statement.

JEE Main 2024 Physics, Kinetic Theory of Gases — question figure

Official previous-year question

Held on 30 Jan 2024 · Verified 6 Jul 2026.

Options

A
${C}_{P}>{C}_{B}>{C}_{V}$
B
${C}_{A}=0$ and ${C}_{B}=\infty$
C
${C}_{P}>{C}_{V}>{C}_{A}={C}_{B}$
D
${C}_{A}>{C}_{P}>{C}_{V}$

Did you get this right?

Solution

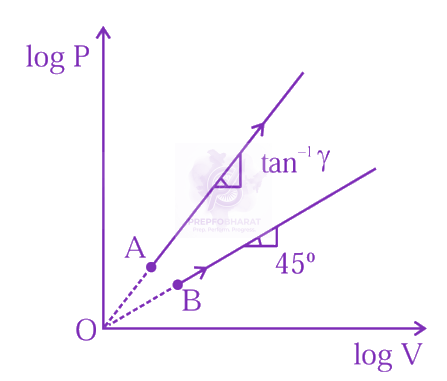

JEE Main 2024 Physics, Kinetic Theory of Gases — solution figure

For process $A$ :

$\mathrm{log}P=\gamma \mathrm{log}V\Rightarrow P={V}^{\gamma },(\gamma >1)$

$P{V}^{-\gamma }=$ Constant

${C}_{A}={C}_{V}+\frac{R}{1+\gamma }\ldots (i)$

Likewise, for process $B\rightarrow P{V}^{-1}=$ Constant

${C}_{B}={C}_{v}+\frac{R}{1+1}$

${C}_{B}={C}_{v}+\frac{R}{2}\ldots (\mathrm{ii})$

Also, ${C}_{P}={C}_{v}+R\ldots (\mathrm{iii})$

By $(\mathrm{ii})$ and $(\mathrm{iii})$ , we get

${C}_{P}>{C}_{B}>{C}_{v}$
