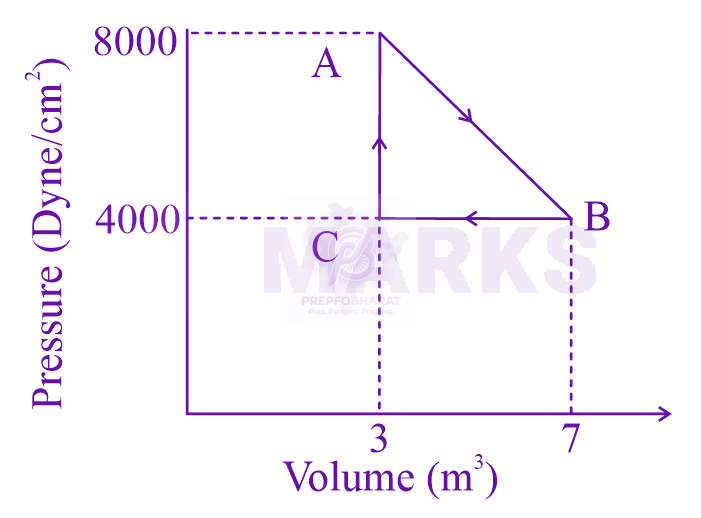

A thermodynamic system is taken from an original state A to an intermediate state B by a linear process as shown in the figure. Its volume is then…

The temperature of a metal strip having coefficient of linear expansion $\alpha$ is increased from $T_1$ to $T_2$ resulting in increase of its length by $\Delta L_1$. The temperature is further increased from $T_2$ to $T_3$ such that the increase in its length is $\Delta L_2$. Given $T_3+T_1=2T_2$ and $T_2-T_1=\Delta T$, the value of $\Delta L_2$ is ______.

The mean free path of a molecule of diameter $5 \times 10^{-10} \mathrm{~m}$ at the temperature $41^{\circ} \mathrm{C}$ and pressure $1.38 \times 10^{5} \mathrm{~Pa}$, is given as $\_\_\_\_$ m. (Given $k_{B}=1.38 \times 10^{-23} \mathrm{~J} / \mathrm{K}$).

Two closed vessels of same volume are joined through a narrow tube and both vessels are filled with air of pressure $90$ kPa and temperature $400$ K. Keeping the temperature of one vessel constant at $400$ K the second vessel temperature is raised to $500$ K. The final pressure in the vessels is _______ kPa.

Heat is supplied to a diatomic gas at constant pressure. Then the ratio of $\Delta Q : \Delta U : \Delta W$ is _______.

An ideal gas undergoes a process maintaining relation between pressure $(P)$ and volume $(V)$ as $P = P_o\left(1 + \left(\dfrac{V_o}{V}\right)^2\right)^{-1}$, where $P_o$ and $V_o$ are constants. If two samples $A$ and $B$ (two moles each) with initial volumes $V_o$ and $3V_o$ respectively undergo above mentioned process and attain same pressure, then the difference at the temperatures of these samples, $T_B - T_A$ is _____. ($R = $ gas constant)
