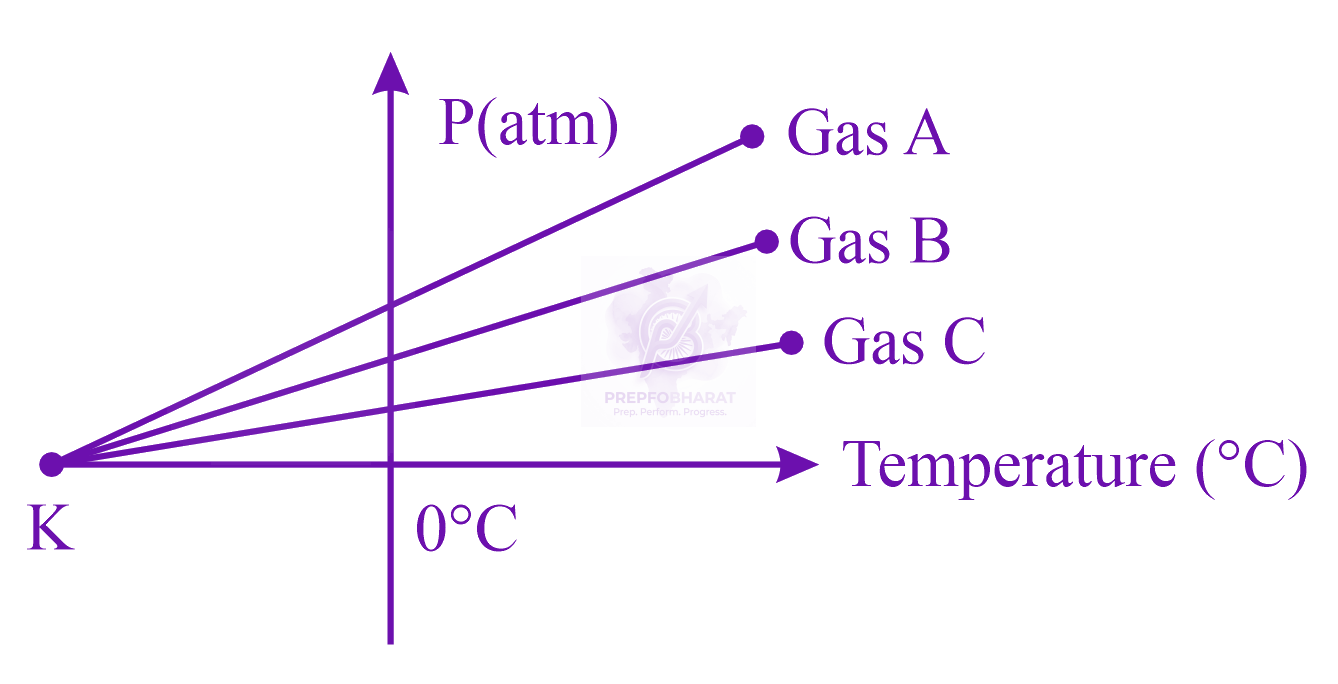

For three low density gases A,B,C pressure versus temperature graphs are plotted while keeping them at constant volume, as shown in the figure
The temperature corresponding to the point ′K′ is:
Held on 1 Feb 2023 · Verified 6 Jul 2026.
−273∘C
−100∘C
–373∘C
−40∘C
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
An ideal gas at pressure $P$ and temperature $T$ is expanding such that $PT^3 = $ constant. The coefficient of volume expansion of the gas is _______.
In the following $p-V$ diagram the equation of state along the curved path is given by $(V-2)^{2}=4 a p$ where $a$ is a constant. The total work done in the closed path is
The r.m.s. speed of oxygen molecules at $47^{\circ} \mathrm{C}$ is equal to that of the hydrogen molecules kept at $\_\_\_\_$ ${ }^{\circ} \mathrm{C}$. (Mass of oxygen molecule/mass of hydrogen molecule $=32 / 2$)
A gas of certain mass filled in a closed cylinder at a pressure of 3.23 kPa has temperature $50^{\circ} \mathrm{C}$. The gas is now heated to double its temperature. The modified pressure is $\_\_\_\_$ Pa. Note: Volume is constant.
A cylindrical tube $A B$ of length $l$, closed at both ends contains an ideal gas of 1 mol having molecular weight $M$. The tube is rotated in a horizontal plane with constant angular velocity $\omega$ about an axis perpendicular to $A B$ and passing through the edge at end $A$, as shown in the figure. If $P_{A}$ and $P_{B}$ are the pressures at $A$ and $B$ respectively, then (Consider the temperature is same at all points in the tube)
