Two thin metallic spherical shells of radii _1 and _2( _1< _2) are placed with their centres coinciding. A material of thermal conductivity K is…

JEE Main 2021 — Physics Thermodynamics

2021mcqhard

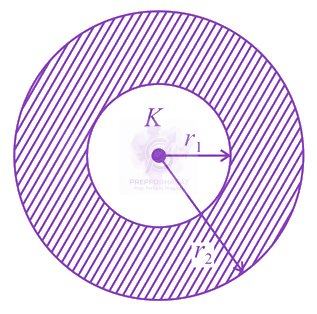

Two thin metallic spherical shells of radii r1{r}_{1}r1​ and r2(r1<r2){r}_{2}({r}_{1}<{r}_{2})r2​(r1​<r2​) are placed with their centres coinciding. A material of thermal conductivity KKK is filled in the space between the shells. The inner shell is maintained at temperature θ1{\theta }_{1}θ1​ and the outer shell at temperature θ2(θ1<θ2).{\theta }_{2}({\theta }_{1}<{\theta }_{2}).θ2​(θ1​<θ2​). The rate at which heat flows radially through the material is :

Official previous-year question

Held on 31 Aug 2021 · Verified 6 Jul 2026.

Options

  1. A

    K(θ2−θ1)r2−r1\frac{K({\theta }_{2}-{\theta }_{1})}{{r}_{2}-{r}_{1}}r2​−r1​K(θ2​−θ1​)​

  2. B

    K(θ2−θ1)(r2−r1)4πr1r2\frac{K({\theta }_{2}-{\theta }_{1})({r}_{2}-{r}_{1})}{4\pi {r}_{1}{r}_{2}}4πr1​r2​K(θ2​−θ1​)(r2​−r1​)​

  3. C

    πKr1r2(θ2−θ1)r2−r1\frac{\pi K{r}_{1}{r}_{2}({\theta }_{2}-{\theta }_{1})}{{r}_{2}-{r}_{1}}r2​−r1​πKr1​r2​(θ2​−θ1​)​

  4. D

    4πKr1r2(θ2−θ1)r2−r1\frac{4\pi K{r}_{1}{r}_{2}({\theta }_{2}-{\theta }_{1})}{{r}_{2}-{r}_{1}}r2​−r1​4πKr1​r2​(θ2​−θ1​)​

Did you get this right?

Sign in to track your attempts and accuracy.

Your note

Sign in to keep a private note on this question. Nothing you write is ever public.

JEE Main Thermodynamics in other years

Thermodynamics 2026Thermodynamics 2025Thermodynamics 2024Thermodynamics 2023Thermodynamics 2022Thermodynamics 2020Thermodynamics 2019Thermodynamics 2018Thermodynamics 2017Thermodynamics 2016Thermodynamics 2015Thermodynamics 2014

More JEE Main Thermodynamics questions

10 mole of oxygen is heated at constant volume from $30^{\circ} \mathrm{C}$ to $40^{\circ} \mathrm{C}$. The change in the internal energy of the gas is $\_\_\_\_$ cal. (The molecular specific heat of oxygen at constant pressure, $C_{P}=7 \mathrm{cal} / \mathrm{mol}.{ }^{\circ} \mathrm{C}$ and $\mathrm{R}=2 \mathrm{cal} / \mathrm{mol}.{ }^{\circ} \mathrm{C}$.)

2026easy

An ideal gas at pressure $P$ and temperature $T$ is expanding such that $PT^3 = $ constant. The coefficient of volume expansion of the gas is _______.

2026medium

In the following $p-V$ diagram the equation of state along the curved path is given by $(V-2)^{2}=4 a p$ where $a$ is a constant. The total work done in the closed path is ![JEE Main 2026 Physics, Thermodynamics — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Thermodynamics/6983c1ac8bfdbb24356397b1/question_1__q_6983c1ac8bfdbb24356397b1__cdn-question-pool.getmarks.app__28S1_q_42_1_v2__8340a8ba67_final_ppt_sync.png)

2026hard

The volume of an ideal gas increases 8 times and temperature becomes $(1 / 4)^{\text {th }}$ of initial temperature during a reversible change. If there is no exchange of heat in this process $(\Delta \mathrm{Q}=0)$ then identify the gas from the following options (Assuming the gases given in the options are ideal gases):

2026medium

A certain gas is isothermally compressed to $\left(\dfrac{1}{3}\right)^{rd}$ of its initial volume ($V_o = 3$ litre) by applying required pressure. If the bulk modulus of the gas is $3 \times 10^5$ N/m$^2$, the magnitude of work done on the gas is _______ J.

2026medium
