$n$ mole of a perfect gas undergoes a cyclic process $ABCA$ (see figure) consisting of the following processes.

$A\rightarrow B:$ Isothermal expansion at temperature $T$ so that the volume is doubled from ${V}_{1}$ to ${V}_{2}=2{V}_{1}$ and pressure changes from ${P}_{1}$ to ${P}_{2}$

$B\rightarrow C:$ Isobaric compression at pressure ${P}_{2}$ to initial volume ${V}_{1}.$

$C\rightarrow A:$ Isochoric change leading to change of pressure from ${P}_{2}$ to ${P}_{1}$

Total work done in the complete cycle $ABCA$ is:

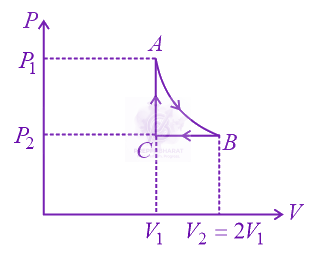

JEE Main 2021 Physics, Thermodynamics — question figure

Official previous-year question

Held on 24 Feb 2021 · Verified 6 Jul 2026.

Options

A
$nRT(\mathrm{ln}2-\frac{1}{2})$
B
$nRT\mathrm{ln}2$
C
$nRT(\mathrm{ln}2+\frac{1}{2})$
D
$0$

Did you get this right?

Solution

${W}_{\mathrm{isothermal}}=nRT\mathrm{ln}(\frac{{V}_{2}}{{V}_{1}})$ \

${W}_{\mathrm{isobaric}}=P\Delta V=nR\Delta T$

${W}_{\mathrm{isochoric}}=0$

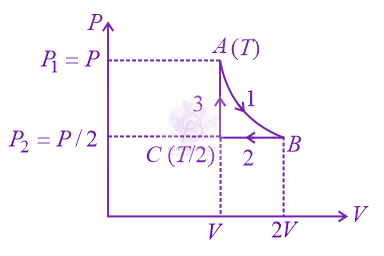

JEE Main 2021 Physics, Thermodynamics — solution figure

${W}_{1}=nRT\mathrm{ln}(\frac{2V}{V})=nRT\mathrm{ln}2$

${W}_{2}=nR(\frac{T}{2}-T)=-nR\frac{T}{2}$

${W}_{3}=0$

$\Rightarrow {W}_{\mathrm{net}}={W}_{1}+{W}_{2}+{W}_{3}$

${W}_{\mathrm{net}}=nRT(\mathrm{ln}2-\frac{1}{2})$
