QAC+QDC=QCB
2ℓKA(200−t)+ℓKA(125−t)=2ℓ(t−100)KA
400−2t+125−t=2t−200
725=5t
t=145ºC
QCD=ℓKA(145−125)=KAℓ20=2W
A rod CD of thermal resistance 10.0 KW^-1 is joined at the middle of an identical rod AB as shown in figure. The ends A,B and D are maintained at…
JEE Main 2021 — Physics Thermodynamics
2021integermedium

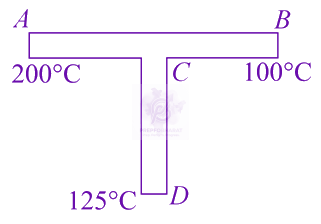

A rod CD of thermal resistance 10.0KW−1 is joined at the middle of an identical rod AB as shown in figure. The ends A,B and D are maintained at 200∘C,100∘C and 125∘C respectively. The heat current in CD is PW. The value of P is
Official previous-year question
Held on 27 Aug 2021 · Verified 6 Jul 2026.
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
JEE Main Thermodynamics in other years
More JEE Main Thermodynamics questions
A cylinder with adiabatic walls is closed at both ends and is divided into two compartments by a frictionless adiabatic piston. Ideal gas is filled in both (left and right) the compartments at same $P, V, T$. Heating is started from left side until pressure changes to $\dfrac{27P}{8}$. If initial volume of each compartment was $9$ litres then the final volume in right-hand side compartment is __________ litres. (for this ideal gas $C_P/C_V = 1.5$)
2026medium
10 mole of oxygen is heated at constant volume from $30^{\circ} \mathrm{C}$ to $40^{\circ} \mathrm{C}$. The change in the internal energy of the gas is $\_\_\_\_$ cal. (The molecular specific heat of oxygen at constant pressure, $C_{P}=7 \mathrm{cal} / \mathrm{mol}.{ }^{\circ} \mathrm{C}$ and $\mathrm{R}=2 \mathrm{cal} / \mathrm{mol}.{ }^{\circ} \mathrm{C}$.)
2026easy
An insulated cylinder of volume $60 \mathrm{~cm}^{3}$ is filled with a gas at $27^{\circ} \mathrm{C}$ and 2 atmospheric pressure. Then the gas is compressed making the final volume as $20 \mathrm{~cm}^{3}$ while allowing the temperature to rise to $77^{\circ} \mathrm{C}$. The final pressure is $\_\_\_\_$ atmospheric pressure.
2026easy
A gas based geyser heats water flowing at the rate of 5.0 litres per minute from $27^{\circ} \mathrm{C}$ to $87^{\circ} \mathrm{C}$. The rate of consumption of the gas is $\_\_\_\_$ $\mathrm{g} / \mathrm{s}$. (Take heat of combustion of gas $=5.0 \times 10^{4} \mathrm{~J} / \mathrm{g}$) specific heat capacity of water $=4200 \mathrm{~J} / \mathrm{kg} \cdot{ }^{\circ} \mathrm{C}$
2026medium
An ideal gas undergoes an isothermal expansion. Which of the following is true?
2026medium
