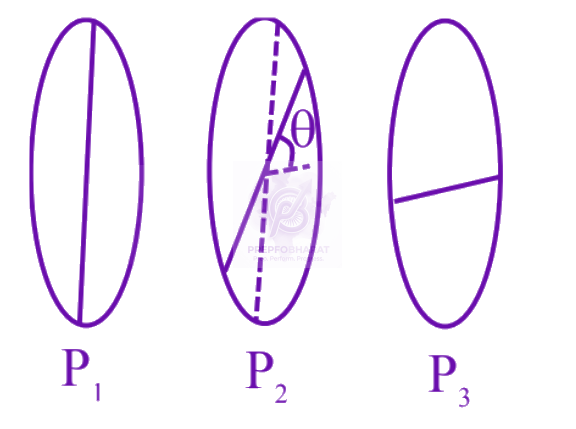

Through P2I1=I0sin2(2π−θ)

I1=I0cos2θ
Through P3Inet =(I0cos2θ)sin2θ
Inct=4I0[sin(2θ)]2 for max Inet θ=45∘
So angle between P2 and P3=4π
Correct Ans. (1)
JEE Main 2025 — Physics Optics
Two polarisers P1 and P2 are placed in such a way that the intensity of the transmitted light will be zero. A third polariser P3 is inserted in between P1 and P2, at the particular angle between P2 and P3. The transmitted intensity of the light passing the through all three polarisers is maximum. The angle between the polarisers P2 and P3 is :
Held on 4 Apr 2025 · Verified 6 Jul 2026.
4π
6π
8π
3π
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
In Young's double slit experiment, the fringe width of the interference pattern produced on the screen is $2.4$ $\mu$m. If the experiment is carried out in another medium having refractive index $1.2$, the fringe width will be _____ $\mu$m.
The magnitudes of power of a biconvex lens (refractive index 1.5) and that of a plano-concave lens (refractive index $=1.7$) are same. If the curvature of planoconcave lens exactly matches with the curvature of back surface of the biconvex lens, then ratio of radius of curvature of front and back surface of the biconvex lens is $\_\_\_\_$.
In a microscope of tube length 10 cm two convex lenses are arranged with focal length of 2 cm and 5 cm. Total magnification obtained with this system for normal adjustment is $(5)^{k}$. The value of $k$ is $\_\_\_\_$.
The exit surface of a prism with refractive index $n$ is coated with a material having refractive index $\frac{n}{2}$. When this prism is set for minimum angle of deviation, it exactly meets the condition of critical angle. The prism angle is $\_\_\_\_$.
An unpolarized light of certain intensity passes through a combination of two polarizers whose transmission axes are at $30°$ and $90°$, respectively, with respect to the horizontal axis. A third polarizer with its transmission axis at $60°$ with the horizontal axis is placed between the two existing polarizers. The ratio of the output intensities with and without the third polarizer is ______.
