In a double slit experiment shown in figure, when light of wavelength $400\mathrm{nm}$ is used, dark fringe is observed at $P$. If $D=0.2m$, the minimum distance between the slits ${S}_{1}$ and ${S}_{2}$ is $\alpha \mathrm{mm}$. Write the value of $10\alpha$ to the nearest integer. ![JEE Main 2024 Physics, Wave Optics — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Wave_Optics/6682bd88ba0e94a3c4025d3c/question_1__q_6682bd88ba0e94a3c4025d3c__cdn-question-pool.getmarks.app__db11ceee-3588-4622-97d4-6541cebc69d4__94b12cc91e_final_ppt_sync.png)

JEE Main 2024 — Physics Optics

2024integerhard

In a double slit experiment shown in figure, when light of wavelength $400\mathrm{nm}$ is used, dark fringe is observed at $P$ . If $D=0.2m$ , the minimum distance between the slits ${S}_{1}$ and ${S}_{2}$ is $\alpha \mathrm{mm}$ . Write the value of $10\alpha$ to the nearest integer.

JEE Main 2024 Physics, Wave Optics — question figure

Official previous-year question

Held on 29 Jan 2024 · Verified 6 Jul 2026.

Did you get this right?

Solution

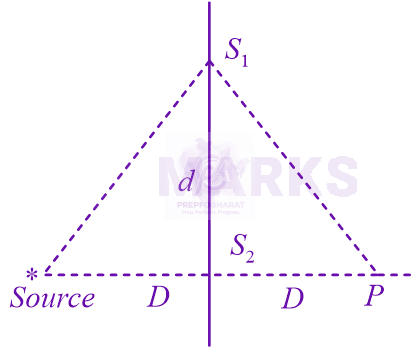

JEE Main 2024 Physics, Wave Optics — solution figure

According to the given diagram, the path difference for minima at P is given by

$\Delta x=2\sqrt{{D}^{2}+{d}^{2}}-2D...(1)$

And, from the condition of minima, it follows that

$\Delta x=\frac{\lambda }{2}...(2)$

Equations (1) and (2) imply that

$2\sqrt{{D}^{2}+{d}^{2}}-2D=\frac{\lambda }{2}$

$\Rightarrow \sqrt{{D}^{2}+{d}^{2}}-D=\frac{\lambda }{4}$

$\Rightarrow \sqrt{{D}^{2}+{d}^{2}}=\frac{\lambda }{4}+D$

$\Rightarrow {D}^{2}+{d}^{2}={D}^{2}+\frac{{\lambda }^{2}}{16}+\frac{D\lambda }{2}$

$\Rightarrow {d}^{2}=\frac{D\lambda }{2}+\frac{{\lambda }^{2}}{16}$

$\Rightarrow {d}^{2}=\frac{0.2\times 400\times {10}^{-9}}{2}+\frac{16\times {10}^{-14}}{16}$

$\Rightarrow {d}^{2}\approx 400\times {10}^{-10}$

$\begin{matrix}\therefore d & = & 20\times {10}^{-5}m \\ & = & 0.20\mathrm{mm}\end{matrix}$

Therefore, $10\alpha =2$ .

Your note

JEE Main Optics in other years

Optics 2026 Optics 2025 Optics 2023 Optics 2022 Optics 2021 Optics 2020 Optics 2019 Optics 2018 Optics 2017 Optics 2016 Optics 2015 Optics 2014

More JEE Main Optics questions

When an unpolarized light falls at a particular angle on a glass plate (placed in air), it is observed that the reflected beam is linearly polarized. The angle of refracted beam with respect to the normal is $\_\_\_\_$. $\left(\tan ^{-1}(1.52)=57.7^{\circ}\right.$, refractive indices of air and glass are 1.00 and 1.52, respectively.)

2026medium

In Young's double slit experiment, the fringe width is β. If the wavelength of light is doubled and the slit separation is halved, the new fringe width is:

2026medium

A biconvex lens is formed by using two thin planoconvex lenses, as shown in the figure. The refractive index and radius of curved surfaces are also mentioned in figure. When an object is placed on the left side of lens at a distance of 30 cm from the biconvex lens, the magnification of the image will be : ![JEE Main 2026 Physics, Ray Optics — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Ray_Optics/6983c1b28bfdbb24356397fd/question_1__q_6983c1b28bfdbb24356397fd__cdn-question-pool.getmarks.app__28S2_q_43_1__a26fa0afbd_final_ppt_sync.png)

2026hard

A collimated beam of light of diameter 2 mm is propagating along $x$-axis. The beam is required to be expanded in a collimated beam of diameter 14 mm using a system of two convex lenses. If first lens has focal length 40 mm, then the focal length of second lens is $\_\_\_\_$ mm.

2026medium

Light ray incident along a vector $\vec{AO}$ $(\vec{AO} = 2\hat{i}-3\hat{j})$ emerges out along vector $\vec{OB}$ $(\vec{OB} = C\hat{i}-4\hat{j})$ as shown in the figure below. The value of $C$ is ________. ![JEE Main 2026 Physics, Ray Optics — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Ray_Optics/69d8073a81239f6567c4f345/question_1__q_69d8073a81239f6567c4f345__cdn-question-pool.getmarks.app__08APRS2__q42_d1__9c03865d34_final_ppt_sync.jpg)

2026medium
