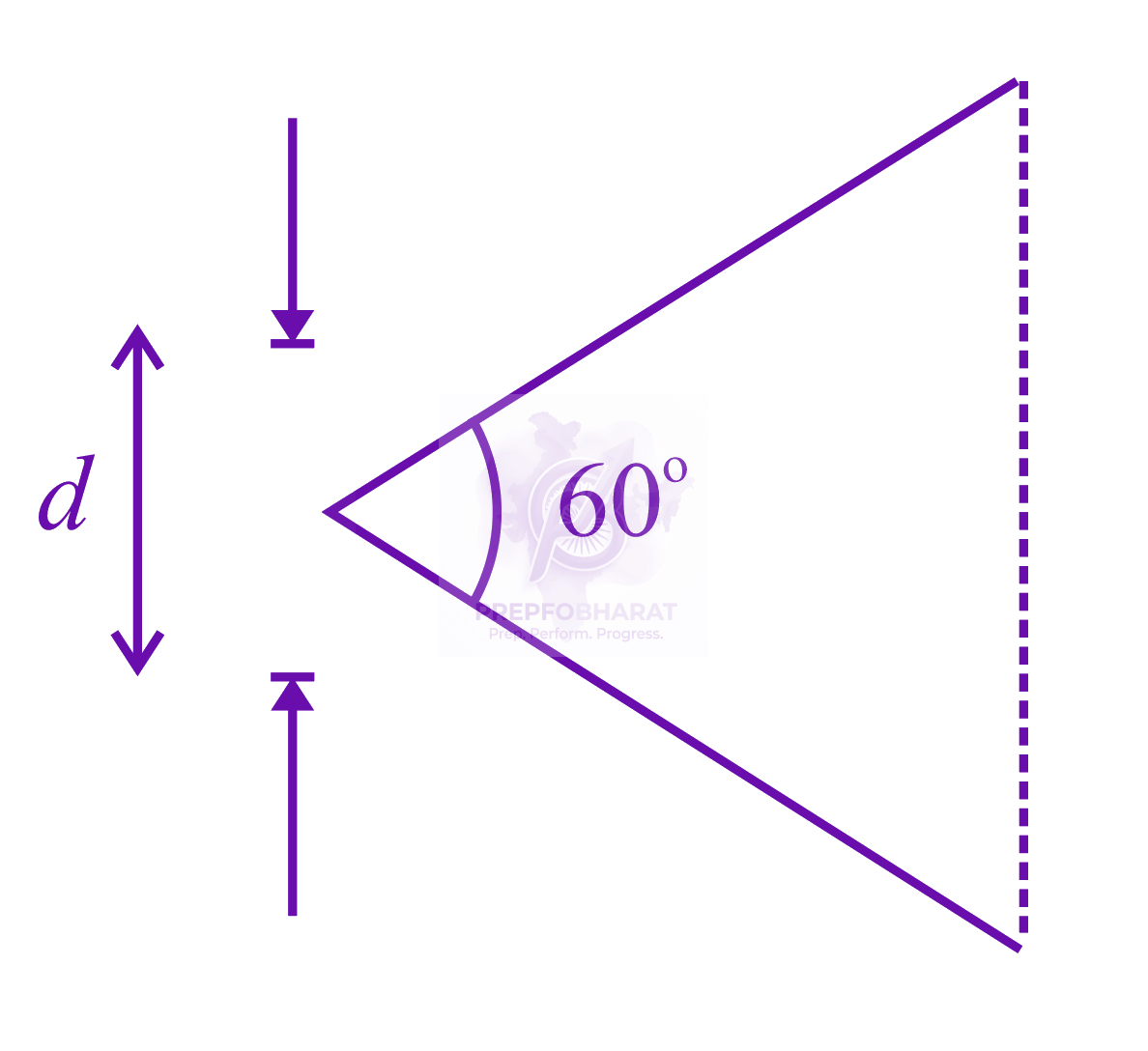

In diffraction, dsin30∘=λ, λ=2d
Young’s fringe width [ d′- the separation between two slits]
β=d′λ×D⇒10−2=2d×d′50×10−2
⇒10−2=2×d′10−6×50×10−2⇒d′=25μm.
The angular width of the central maximum in a single slit diffraction pattern is 60∘ . The width of the slit is 1μm. The slit is illuminated by monochromatic plane waves. If another slit of the same width is made near it, Young's fringes can be observed on a screen placed at a distance 50cm from the slits. If the observed fringe width is 1cm, what is slit separation distance? (i.e., the distance between the centres of each slit.)
Held on 8 Apr 2018 · Verified 6 Jul 2026.
100μm
25μm
50μm
75μm
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
Which of the following are true for a single slit diffraction? A. Width of central maxima increases with increase in wavelength keeping slit width constant. B. Width of central maxima increases with decrease in wavelength keeping slit width constant. C. Width of central maxima increases with decrease in slit width at constant wavelength. D. Width of central maxima increases with increase in slit width at constant wavelength. E. Brightness of central maxima increases for decrease in wavelength at constant slit width.
In parallax method for the determination of focal length of a concave mirror, the object should always be placed:
A slit of width $a$ is illuminated by light of wavelength $\lambda$. The linear separation between $1^{st}$ and $3^{rd}$ minima in the diffraction pattern produced on a screen placed at a distance $D$ from the slit system is _____.
A beam of light consisting of wavelengths 650 nm and 550 nm illuminates the Young's double slits with separation of 2 mm such that the interference fringes are formed on a screen, placed at a distance of 1.2 m from the slits. The least distance of a point from the central maximum, where the bright fringes due to both the wavelengths coincide, is $\_\_\_\_$ $\times 10^{-5} \mathrm{~m}$.
A thin prism with angle $5^{\circ}$ of refractive index 1.72 is combined with another prism of refractive index 1.9 to produce dispersion without deviation. The angle of second prism is $\_\_\_\_$.
