If a lens of refractive index μ is immersed in a medium of refractive index μ1, then its focal length in medium is given by fm1=(mμl−1(R11)−R21) If fa is the focal length of lens in air, then fa1=(aμl−1(R11−R21)⇒fafm=(mμl−1)(aμl−1) If μ1>μ, then fm and fa have opposite signs and the nature of lens changes i.e. a convex lens diverges the light rays and concave lens converges the light rays. Thus given option (a) is correct.
The refractive index of the material of a concave lens is μ. It is immersed in a medium of refractive index μ_1. A parallel beam of light is incident…
JEE Main 2014 — Physics Optics
2014mcqeasy

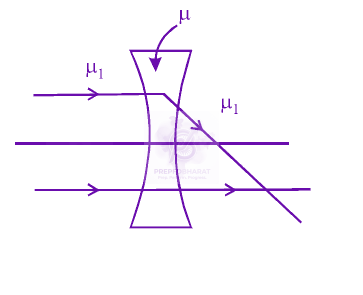

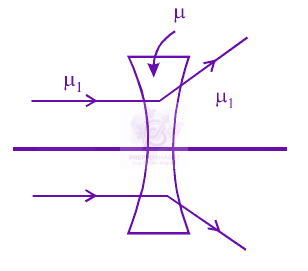

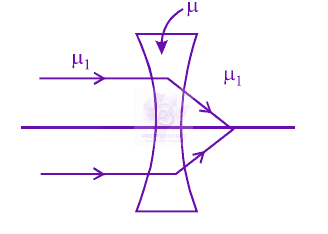

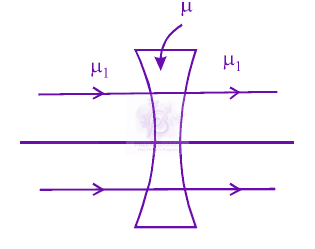

The refractive index of the material of a concave lens is μ. It is immersed in a medium of refractive index μ1. A parallel beam of light is incident on the lens. The path of the emergent rays when μ1>μ is:
Official previous-year question
Held on 12 Apr 2014 · Verified 6 Jul 2026.
Options
- A
- B
- C
- D
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
JEE Main Optics in other years
More JEE Main Optics questions
In a microscope of tube length 10 cm two convex lenses are arranged with focal length of 2 cm and 5 cm. Total magnification obtained with this system for normal adjustment is $(5)^{k}$. The value of $k$ is $\_\_\_\_$.
2026easy
In Young's double slit experiment, the fringe width of the interference pattern produced on the screen is $2.4$ $\mu$m. If the experiment is carried out in another medium having refractive index $1.2$, the fringe width will be _____ $\mu$m.
2026easy
The magnitudes of power of a biconvex lens (refractive index 1.5) and that of a plano-concave lens (refractive index $=1.7$) are same. If the curvature of planoconcave lens exactly matches with the curvature of back surface of the biconvex lens, then ratio of radius of curvature of front and back surface of the biconvex lens is $\_\_\_\_$.
2026medium
The exit surface of a prism with refractive index $n$ is coated with a material having refractive index $\frac{n}{2}$. When this prism is set for minimum angle of deviation, it exactly meets the condition of critical angle. The prism angle is $\_\_\_\_$.
2026medium
An unpolarized light of certain intensity passes through a combination of two polarizers whose transmission axes are at $30°$ and $90°$, respectively, with respect to the horizontal axis. A third polarizer with its transmission axis at $60°$ with the horizontal axis is placed between the two existing polarizers. The ratio of the output intensities with and without the third polarizer is ______.
2026medium
