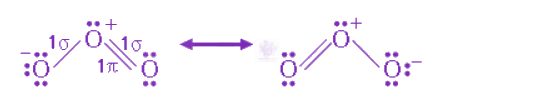

Key Idea : Single bond contains =1σ bond Double bond contains =1σ bond +1π bond Triple bond contains =1σ bond +2π bond The molecule of O3 is bent with an angle of 116.8∘ and equal O−O distance of 128pm. The ozone molecule consists of 2 sigma and 1 pi bonds. The angular shape of ozone molecule is represented as :
The angular shape of ozone molecule ( O_3 ) consists of
NEET UG 2008 — Chemistry Physical Chemistry
The angular shape of ozone molecule (O3) consists of
Held on 30 Apr 2008 · Verified 9 Jul 2026.
Options
- A
1 sigma and 2 pi bonds
- B
2 sigma and 2 pi bonds
- C
1 sigma and 1 pi bonds
- D
2 sigma and 1 pi bonds
