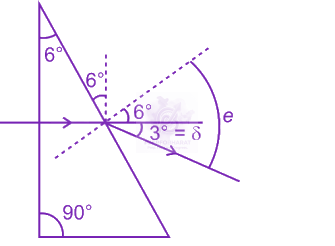

Deviation produced by a thin prism δ=(μ−1)A=(23−1)6∘=3∘ Angle of emergence =e=6∘+3∘=9∘
A horizontal ray of light is incident on the right-angled prism with prism angle 6°. If the refractive index of the material of the prism is 1.5 ,…
NEET UG 2023 — Physics Optics
2023mcqeasy

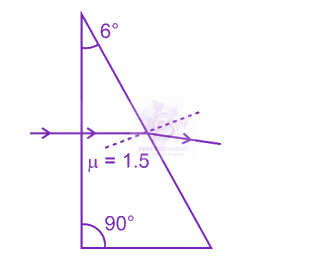

A horizontal ray of light is incident on the right-angled prism with prism angle 6∘. If the refractive index of the material of the prism is 1.5 , then the angle of emergence will be
Official previous-year question
Held on 30 Apr 2023 · Verified 9 Jul 2026.
Options
- A
4∘
- B
6∘
- C
9∘
- D
10∘
