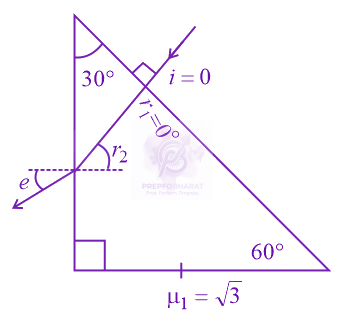

No refraction at face AC.
Apply Snell's law at face BC,
we get,
μ1sini=μ2sinr
3sin30∘=1×sin(e)
23=sin(e)
⇒e=60∘
Find the value of the angle of emergence from the prism. Refractive index of the glass is √3. NEET 2021 Physics, Ray Optics — question figure
NEET UG 2021 — Physics Optics
2021mcqeasy
Find the value of the angle of emergence from the prism. Refractive index of the glass is 3.
Official previous-year question
Held on 30 Apr 2021 · Verified 9 Jul 2026.
Options
- A
45∘
- B
30∘
- C
60∘
- D
90∘
