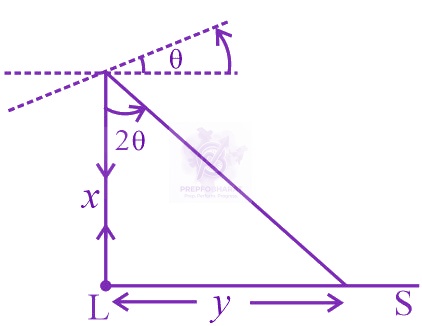

When mirror is rotated by θ angle reflected ray will be rotated by 2θ .
for small θ, xy=2θ
θ=2xy
A beam of light from a source L is incident normally on a plane mirror fixed at a certain distance x from the source. The beam is reflected back as a…
NEET UG 2017 — Physics Optics
2017mcqhard
A beam of light from a source L is incident normally on a plane mirror fixed at a certain distance x from the source. The beam is reflected back as a spot on a scale placed just above the source L. When the mirror is rotated through a small angle θ, the spot of the light is found to move through a distance y on the scale. The angle θ is given by
Official previous-year question
Held on 30 Apr 2017 · Verified 9 Jul 2026.
Options
- A
2xy
- B
xy
- C
2yx
- D
yx
