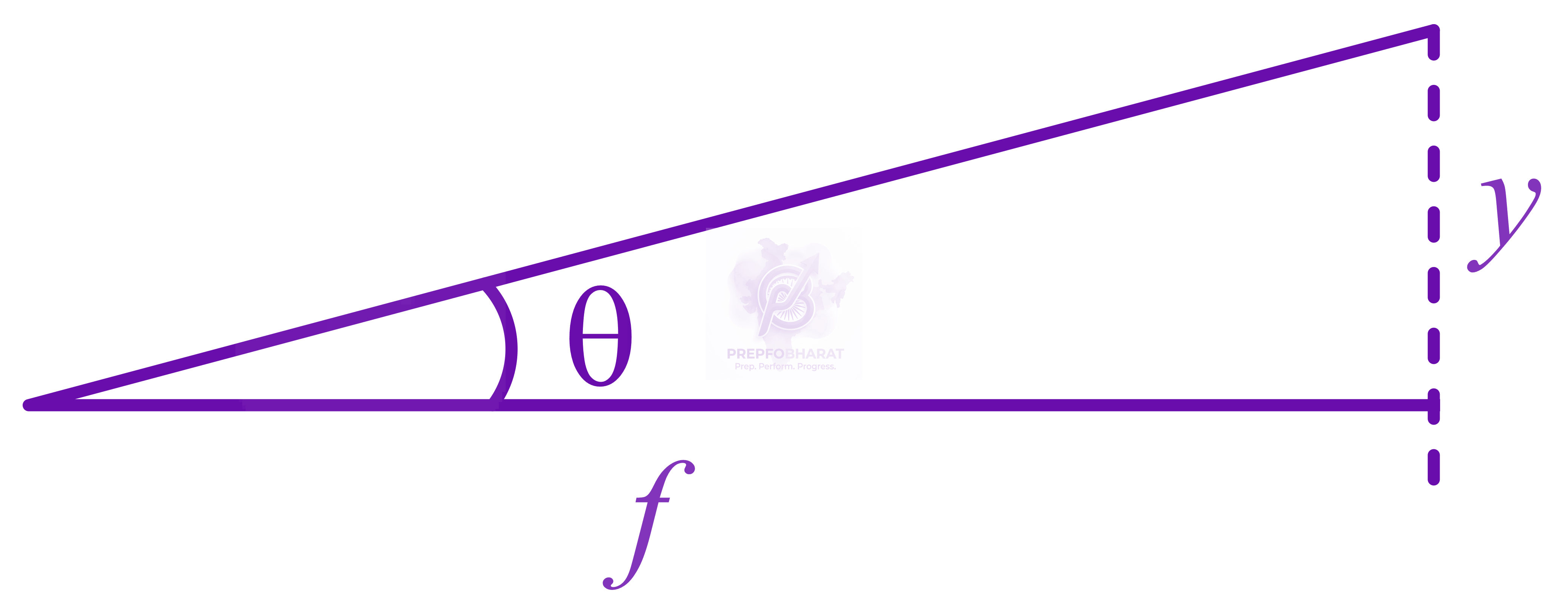

By the principle of single slit diffraction pattern
θ=aλ=fy
y=afλ=0.0260×5×10−5=0.15cm
A linear aperture whose width is 0.02 cm is placed immediately in front of a lens of focal length 60 cm. The aperture is illuminated normally by a…
NEET UG 2016 — Physics Optics
2016mcqmedium
A linear aperture whose width is 0.02cm is placed immediately in front of a lens of focal length 60cm. The aperture is illuminated normally by a parallel beam of wavelength 5×10−5cm. The distance of the first dark band of the diffraction pattern from the centre of the screen is
Official previous-year question
Held on 30 Apr 2016 · Verified 9 Jul 2026.
Options
- A
0.10cm
- B
0.25cm
- C
0.20cm
- D
0.15cm
