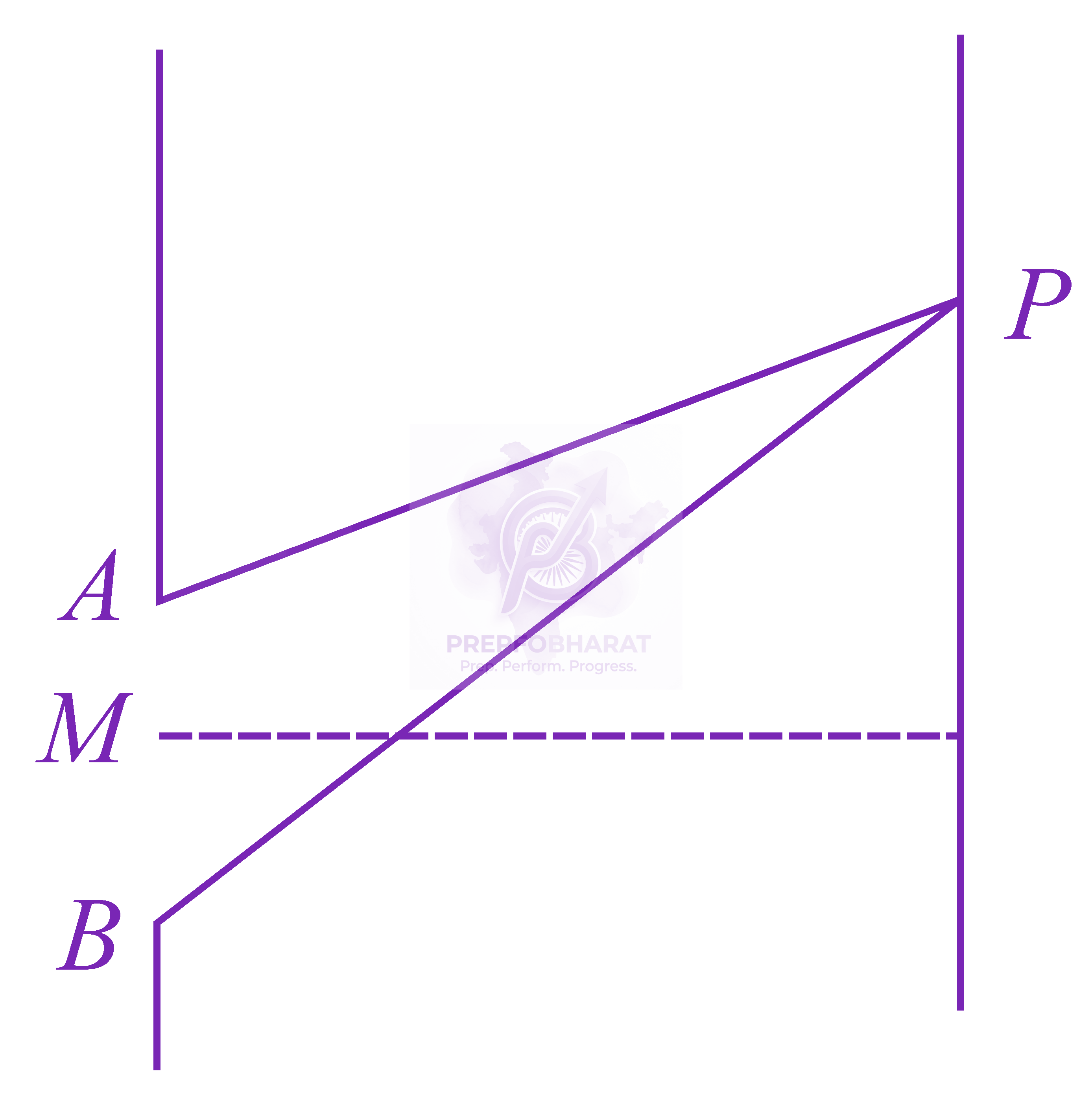

For first minima
AP−BP=λ
AP−MP=2λ
So phase difference =λ2π×2λ=π
At the first minimum adjacent to the central maximum of a single-slit diffraction pattern, the phase difference between the Huygen's wavelet from the edge of the slit and the wavelet from the midpoint of the slit is:
Held on 30 Apr 2015 · Verified 9 Jul 2026.
2π radian
π radian
8π radian
4π radian
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
The refractive index of glass is 1.5. The speed of light in glass is:
Two thin lenses of focal lengths f₁ = +20 cm and f₂ = -10 cm are in contact. The power of the combination is:
An unpolarized light beam travelling in air is incident on a medium of refractive index 1.73 at Brewster's angle. Then -
A microscope has an objective of focal length 2 cm , eyepiece of focal length 4 cm and the tube length of 40 cm . If the distance of distinct vision of eye is 25 cm , the magnification in the microscope is :
The intensity of transmitted light when a polaroid sheet, placed between two crossed polaroids at $22.5^{\circ}$ from the polarization axis of one of the polaroid, is ( $\mathrm{I}_0$ is the intensity of polarised light after passing through the first polaroid):
