For the given incident ray as shown in the figure, the condition of the total internal reflection of this ray and the minimum refractive index of prism will be: ![NEET 2002 Physics, Ray Optics — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/616059730283de43c87e3e22/Physics/images/Ray_Optics/66bcbd85ae81d148616b11f8/question_1__q_66bcbd85ae81d148616b11f8__cdn-question-pool.getmarks.app__ccbnWCNC4Tn-6SKia098pLnc12C0DXJgYvGAvCxH0_k.original.fullsiz__6e6d4e56d4_final_ppt_sync.png)

For the given incident ray as shown in the… - NEET UG 2002 Physics PYQ

NEET UG 2002 — Physics Optics

2002mcqmedium

For the given incident ray as shown in the figure, the condition of the total internal reflection of this ray and the minimum refractive index of prism will be: NEET 2002 Physics, Ray Optics — question figure

Official previous-year question

Held on 30 Apr 2002 · Verified 9 Jul 2026.

Options

A
$\frac{\sqrt{3}+1}{2}$
B
$\frac{\sqrt{2}+1}{2}$
C
$\sqrt{\frac{3}{2}}$
D
$\sqrt{\frac{7}{6}}$

Did you get this right?

Solution

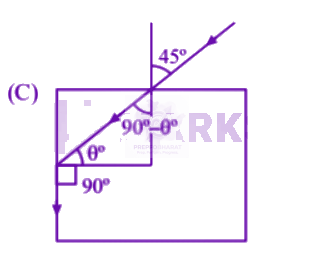

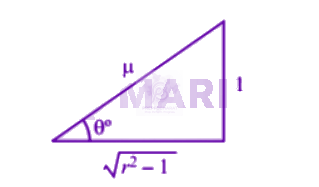

NEET 2002 Physics, Ray Optics — solution figure 1 For given condition and use snell's law 1. $\sin 45^{\circ}=\mu \sin \left(90-q_C\right)$ $\begin{array}{ll} \frac{1}{\sqrt{2}}=\mu \cos \theta_C=\sqrt{\mu^2-1} \\ \Rightarrow \quad \mu^2=1+\frac{1}{2}=\frac{3}{2} \\ \Rightarrow \quad \mu=\sqrt{\frac{3}{2}} \end{array}$ NEET 2002 Physics, Ray Optics — solution figure 2 $\begin{array}{ll} \therefore & \sin \theta_c=\frac{1}{\mu} \\ \Rightarrow \quad \cos \theta_c=\sqrt{\frac{\mu^2-1}{\mu}} \end{array}$
