NEET UG 2017 — Chemistry Inorganic Chemistry

2017mcqmedium

Which of the following pairs of compounds is isoelectronic and isostructural?

Official previous-year question

Held on 30 Apr 2017 · Verified 9 Jul 2026.

Options

A
${\mathrm{BeCl}}_{2},{\mathrm{XeF}}_{2}$
B
${\mathrm{TeI}}_{2},{\mathrm{XeF}}_{2}$
C
${\mathrm{IBr}}_{2}^{-},{\mathrm{XeF}}_{2}$
D
${\mathrm{IF}}_{3},{\mathrm{XeF}}_{2}$

Did you get this right?

Solution

(i) ${ \text{IBr}}_{2}^{-}$

NEET 2017 Chemistry, Chemical Bonding and Molecular Structure — solution figure 1

number of the electron in the valence shell $=7+7+7+1=22$

(ii) ${ \text{BeCl}}_{\text{2}}$

NEET 2017 Chemistry, Chemical Bonding and Molecular Structure — solution figure 2

${\text{sp}}^{\text{3}} \text{d}$ hybridised (linear).

Number of the electron in the valence shell $=2+7+7=16$

(iii) ${ \text{XeF}}_{\text{2}}$

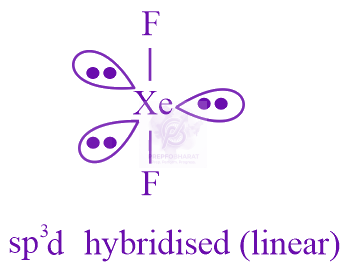

NEET 2017 Chemistry, Chemical Bonding and Molecular Structure — solution figure 3

number of electron in valence shell $=$ $8+7+7=22$

(iv) ${ \text{TeI}}_{\text{2}}$

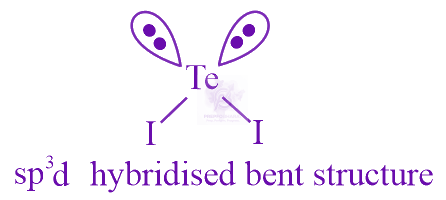

NEET 2017 Chemistry, Chemical Bonding and Molecular Structure — solution figure 4

number of the electron in the valence shell $\text{= 6+7+7=24}$

(v) ${ \text{IF}}_{\text{3}}$

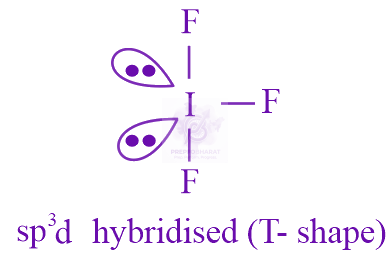

NEET 2017 Chemistry, Chemical Bonding and Molecular Structure — solution figure 5

number of the electron in the valence shell $=7+7+7+7=28$

${ \text{IBr}}_{2}^{-}$ and ${ \text{XeF}}_{\text{2}}$ both are isostructural and isoelectronic.
