NEET UG 2019 — Physics Waves & Oscillations

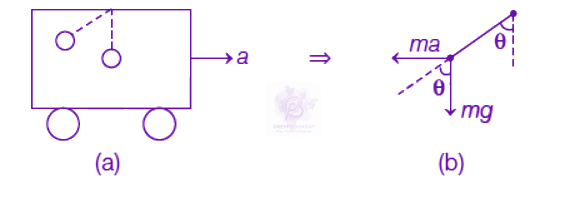

A truck is stationary and has a bob suspended by a light string, in a frame attached to the truck. The truck, suddenly moves to the right with an acceleration of a. The pendulum will tilt
Held on 30 Apr 2019 · Verified 9 Jul 2026.
to the left and the angle of inclination of the pendulum with the vertical is sin−1(ag)
to the left and angle of inclination of the pendulum with the vertical is tan−1(ga)
to the left and angle of inclination of the pendulum with the vertical is sin1−(ga)
to the left and angle of inclination of the pendulum with the vertical is tan−1(ag)
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
In an oscillating spring mass system, a spring is connected to a box filled with sand. As the box oscillates, sand leaks slowly out of the box vertically so that the average frequency $\omega(t)$ and average amplitude $A(t)$ of the system change with time $t$. Which one of the following options schematically depicts these changes correctly?
Two identical point masses P and Q , suspended from two separate massless springs of spring constants $\mathrm{k}_1$ and $\mathrm{k}_2$, respectively, oscillate vertically. If their maximum speeds are the same, the ratio $\left(A_Q / A_P\right)$ of the amplitude $A_Q$ of mass $Q$ to the amplitude $A_P$ of mass $P$ is :
A pipe open at both ends has a fundamental frequency $f$ in air. The pipe is now dipped vertically in a water drum to half of its length. The fundamental frequency of the air column is now equal to :
If $x=5 \sin \left(\pi t+\frac{\pi}{3}\right) \mathrm{m}$ represents the motion of a particle executing simple harmonic motion, the amplitude and time period of motion, respectively, are
Let $\omega_1, \omega_2$ and $\omega_3$ be the angular speed of the second hand, minute hand and hour hand of a smoothly running analog clock, respectively. If $x_1, x_2$ and $x_3$ are their respective angular distances in 1 minute then the factor which remains constant $(k)$ is
