NEET UG 2004 — Electromagnetism

A 6 volt battery is connected to the terminal of a three metre long wire of uniform thickness and resistance of 100 $\mathrm{ohm}$. The difference of potential between two points on the wire separated by a distance of $50 \mathrm{~cm}$ will be:

A battery is charged at a potential of 15 $\mathrm{V}$ for 8 hours when the current flowing is $10 \mathrm{~A}$. The battery on discharge supplies a current of $5 \mathrm{~A}$ for 15 hours. The mean terminal voltage during discharge is $14 \mathrm{~V}$. The "Watt-hour" efficiency of the battery is:

A bullet of mass $2 \mathrm{~g}$ is having of $2 \mu \mathrm{C}$. Through what potential difference must it be accelerated, starting from rest, to acquire a speed of of $10 \mathrm{~m} / \mathrm{s}$ ?

A coil of 40 henry inductance is connected in series with a resistance of $8 \mathrm{ohm}$ and the combination is joined to the terminals of a 2 volt battery. The time constant of the circuit is:

A electric dipole has the magnitude of its charge as $q$ and its dipole moment is $p$. It is placed in a uniform electric field $E$. If its dipole moment is along the direction of the field, the force on it and it and its potential energy are respectively:

A galvanometer acting as a voltmeter will have:

A galvanometer of $50 \mathrm{ohm}$ resistance has 25 divisions. A current $4 \times 10^{-4}$ ampere gives a deflection of one division. To convert this galvanometer into a voltmeter having a range of 25 volts, it should be connected with a resistance of:

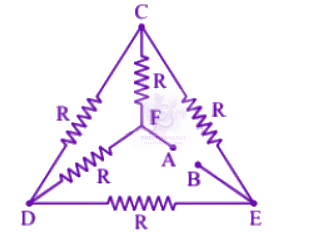

Five equal resistance each of resistance $R$ are connected as shown in the figure. A battery of $V$ volts is connected between $\mathrm{A}$ and $\mathrm{B}$. The current flowing in AFCEF will be:

In India electricity is supplied for domestic use at $220 \mathrm{~V}$. It is supplied at $110 \mathrm{~V}$ in USA. If the resistance of a $60 \mathrm{~W}$ bulb for use in India is $R$, the resistance of a $60 \mathrm{~W}$ bulb for use in USA will be:

Resistance $n$, each of $r$ ohm, when connected in parallel give an equivalent resistance $R \mathrm{~ohm}$. If these resistances were connected in series, the combination would have a resistance in ohms, equal to :

The electric resistance of a certain wire of iron is $R$. If its length and radius are both doubled, then:

The magnetic flux through a circuit of resistance $R$ changes by an amount $\Delta \phi$ in a time $\Delta t$. Then the total quantity of electric charge $Q$ that passes any point in the circuit during the time $\Delta \mathrm{t}$ is represented by:

When three identical bulbs of 60 watt, 200 volt rating are connected in series to a 200 volt supply, the power drawn by them will be:
